Intake Air Splash Shield Replacement

WARNING: This page is about a different variant/trim than selected.

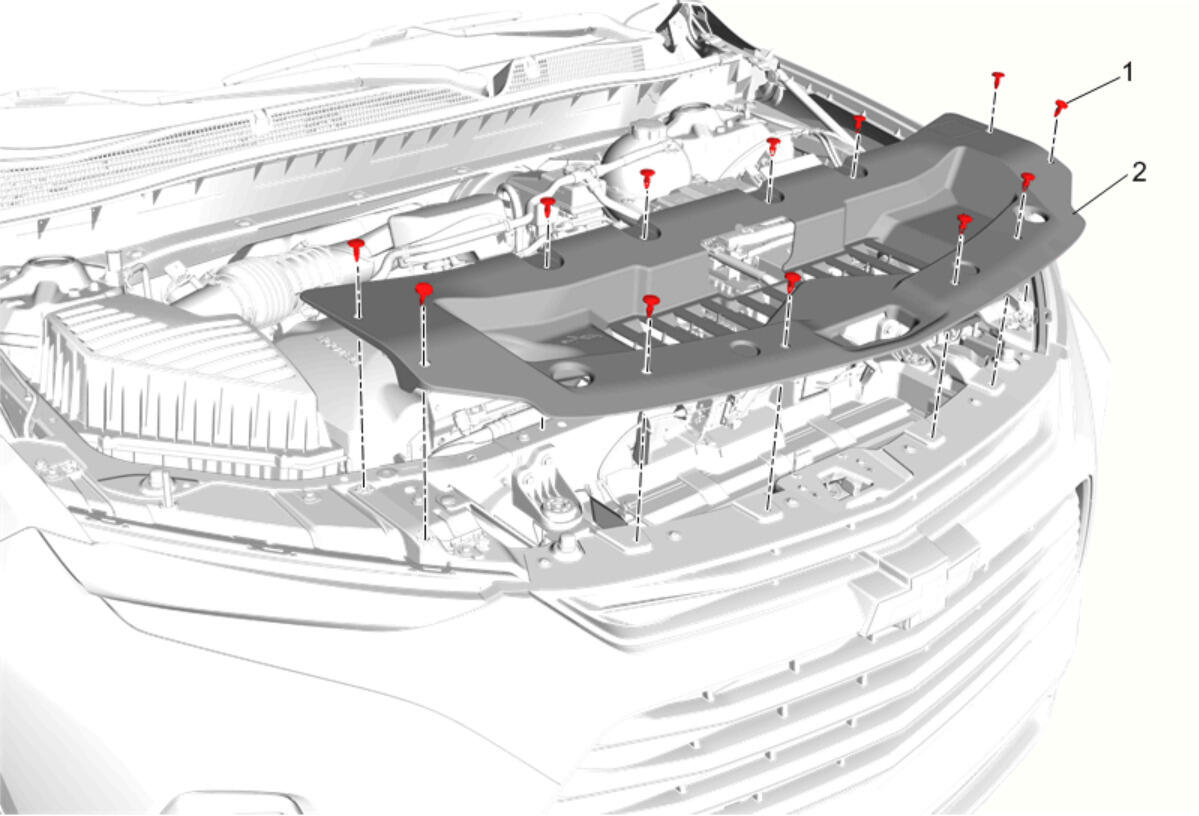

GM5144452Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Intake Air Splash Shield Retainer [12x]
CAUTION:

Refer to Fastener Caution .
2 Intake Air Splash Shield
