Front Fender Insulator Replacement

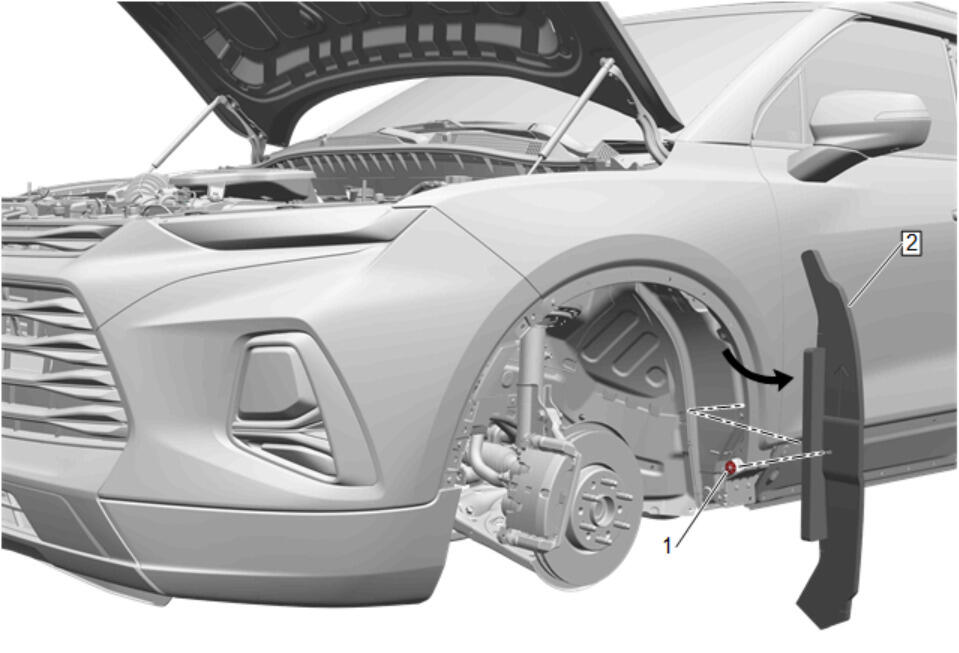

| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Wheelhouse Liner Replacement |
|
| 1 | Front Fender Insulator Retainer |
| 2 | Front Fender Insulator Procedure Grasp the front fender insulator and pull out and down from the rear of the fender. |
