Front End Sheet Metal Diagonal Brace Replacement

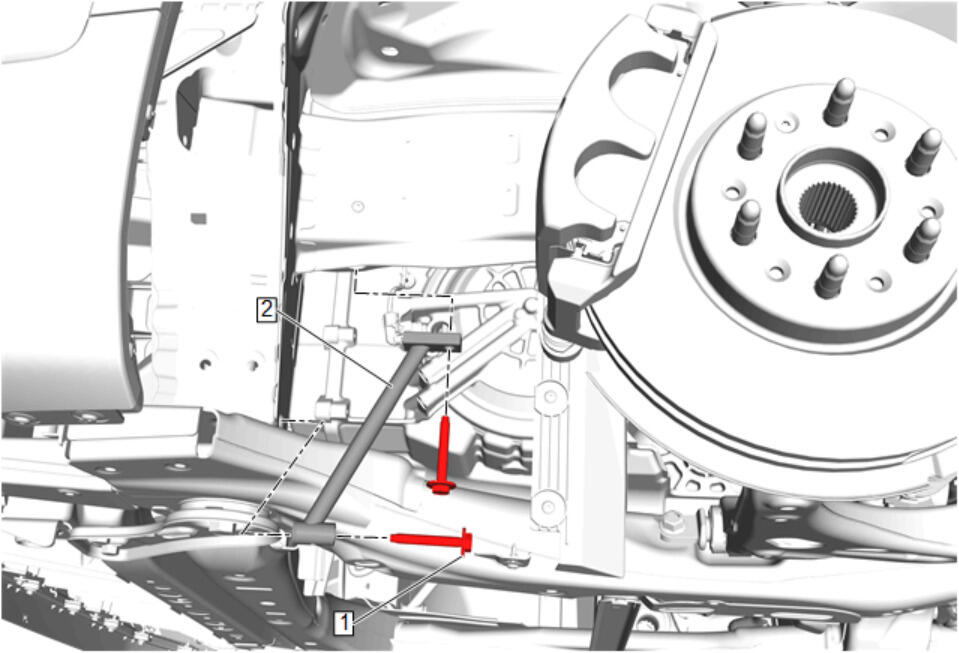

| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Wheelhouse Liner Replacement |
|
| 1 | Front End Sheet Metal Diagonal Brace Bolt [2x]
CAUTION:
Refer to Fastener Caution . Tighten 22 N.m (16 lb ft) |
| 2 | Front End Sheet Metal Diagonal Brace |
