Radio Bracket Replacement

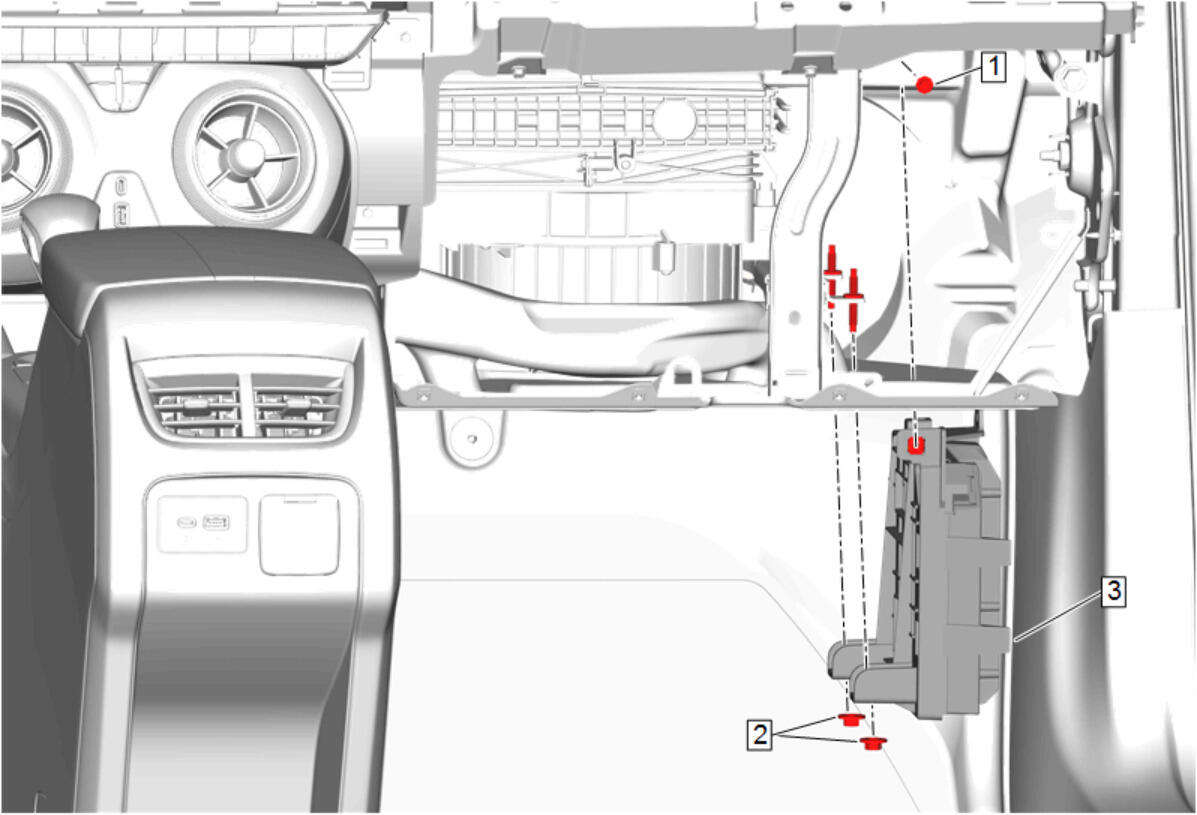

GM5128196Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Instrument Panel Insulator Replacement
  2. Instrument Panel Compartment Replacement
1 Radio Bracket Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Radio Bracket Nut [2x]
Tighten
9 N.m (80 lb in)
3 Radio Bracket

Procedure

  1. Disconnect the electrical connectors and detach the wiring harness as necessary.
  2. Transfer components as necessary.
