Instrument Panel Insulator Replacement

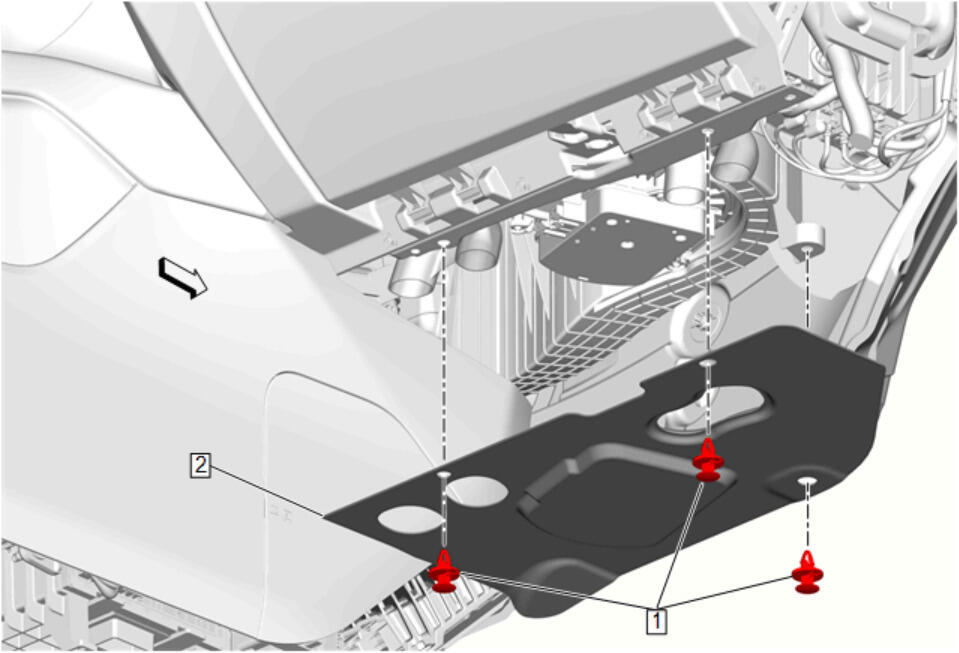

GM5128590Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Instrument Panel Lower Insulator Retainer [3x]
Procedure
Using a suitable tool, remove the retainer.
2 Instrument Panel Insulator
