Front Side Door Wiring Harness Replacement: Notes

Removal Procedure

1. Courtesy of GENERAL MOTORS COMPANY

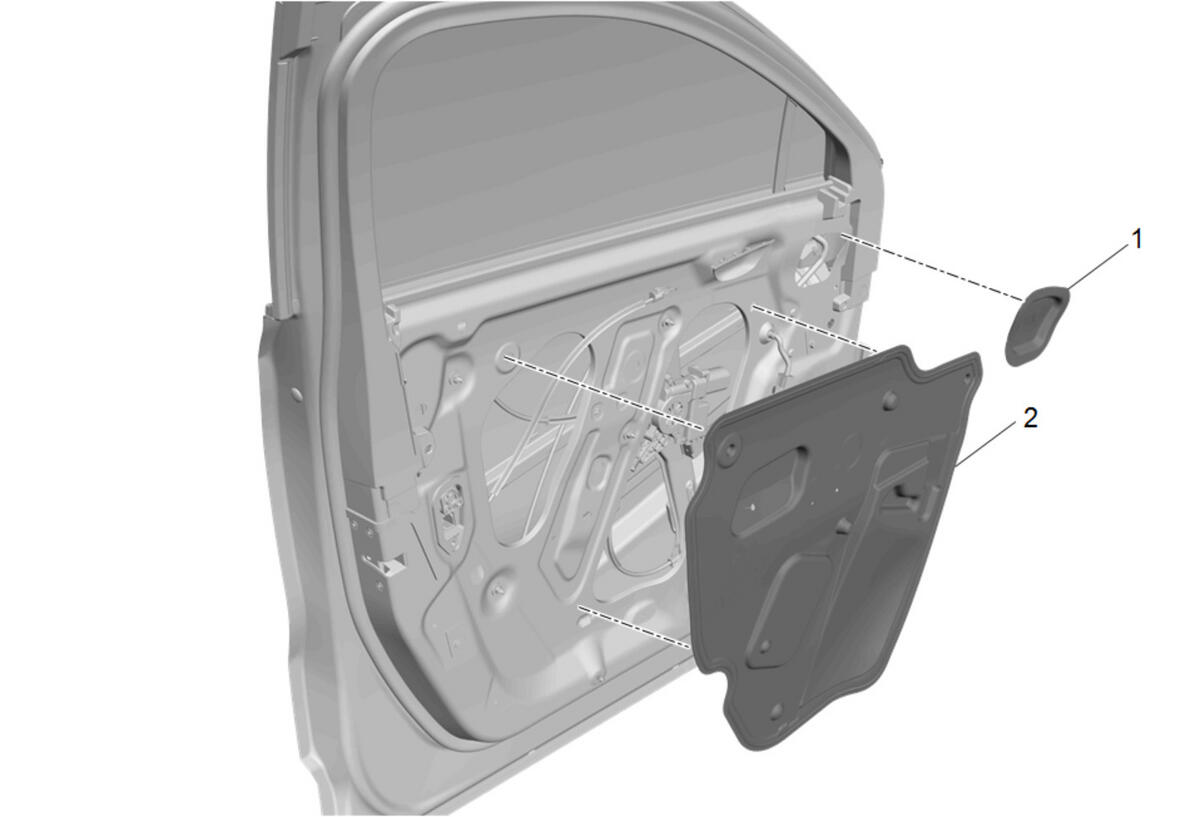

   Front Side Door Water Deflector (1, 2) - Remove - Front Side Door Water Deflector Replacement

2. Courtesy of GENERAL MOTORS COMPANY

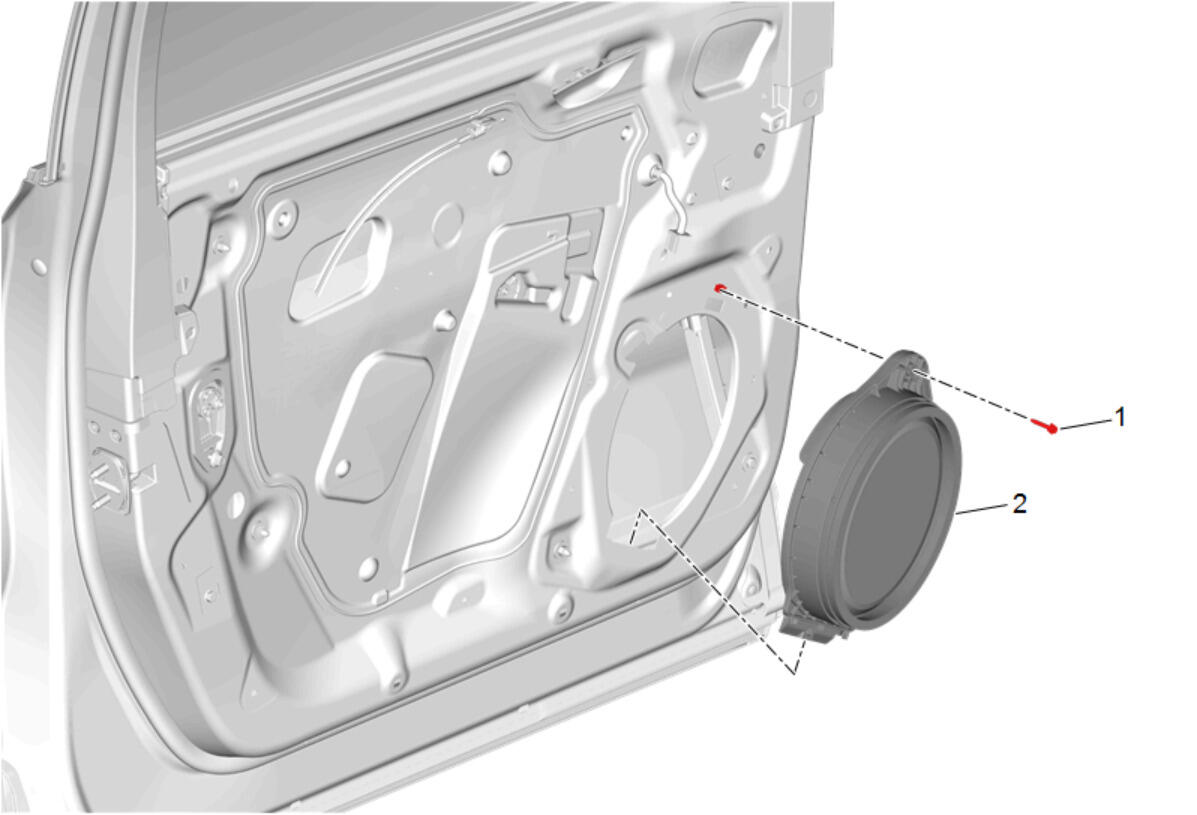

   Radio Front Side Door Speaker (2) - Remove - Radio Front Side Door Speaker Replacement

3. Courtesy of GENERAL MOTORS COMPANY

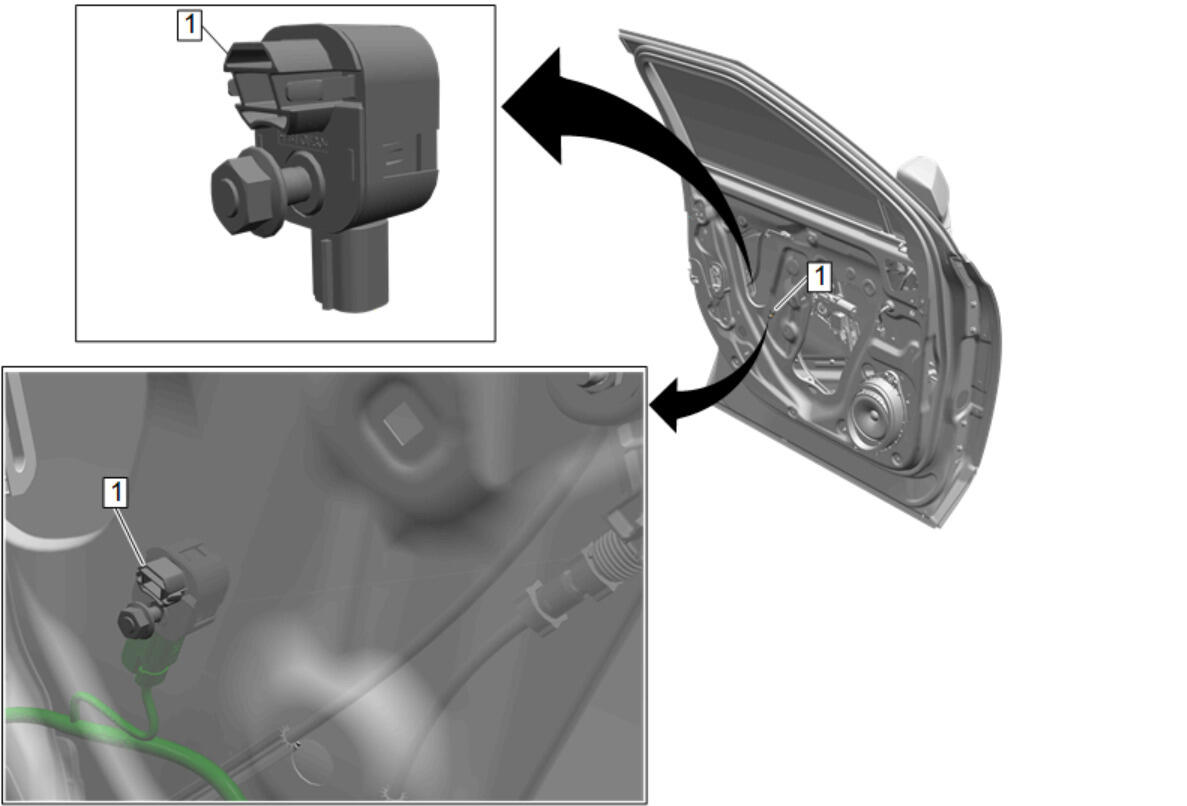

   Airbag Side Impact Sensor (1) - Remove - Airbag Side Impact Sensor Replacement

4. Courtesy of GENERAL MOTORS COMPANY

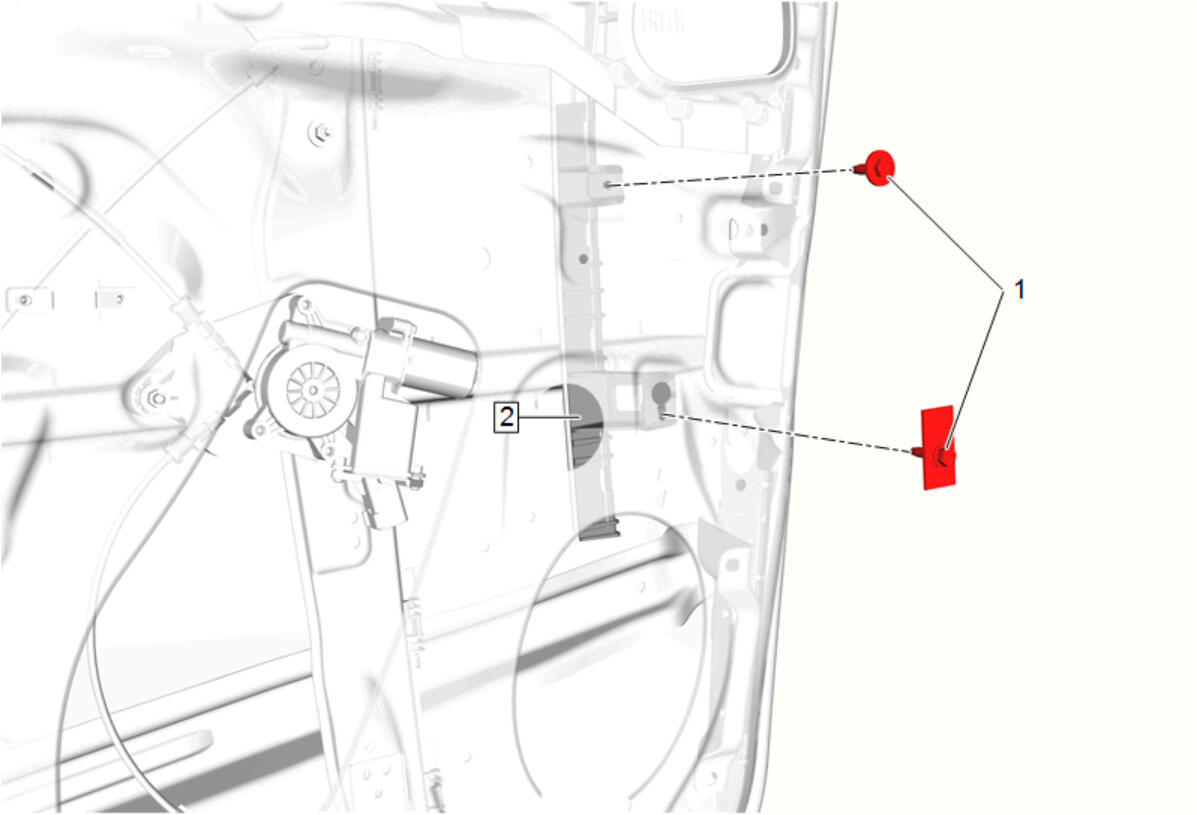

   Front Side Door Window Channel Front Retainer (2) - Remove - Front Side Door Window Channel Front Retainer Replacement

5. Courtesy of GENERAL MOTORS COMPANY

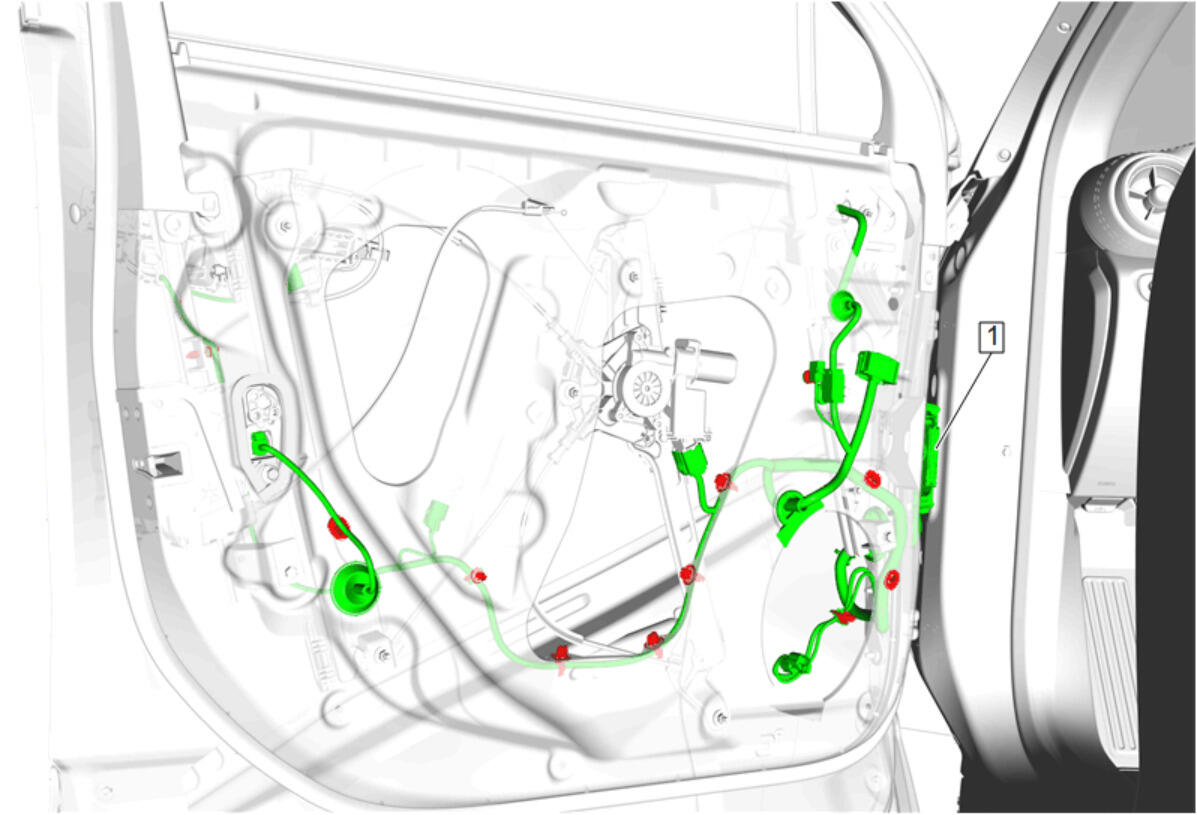

   Front Side Door Wiring Harness (1) - Remove
