Front Side Door Water Deflector Replacement

Courtesy of GENERAL MOTORS COMPANY

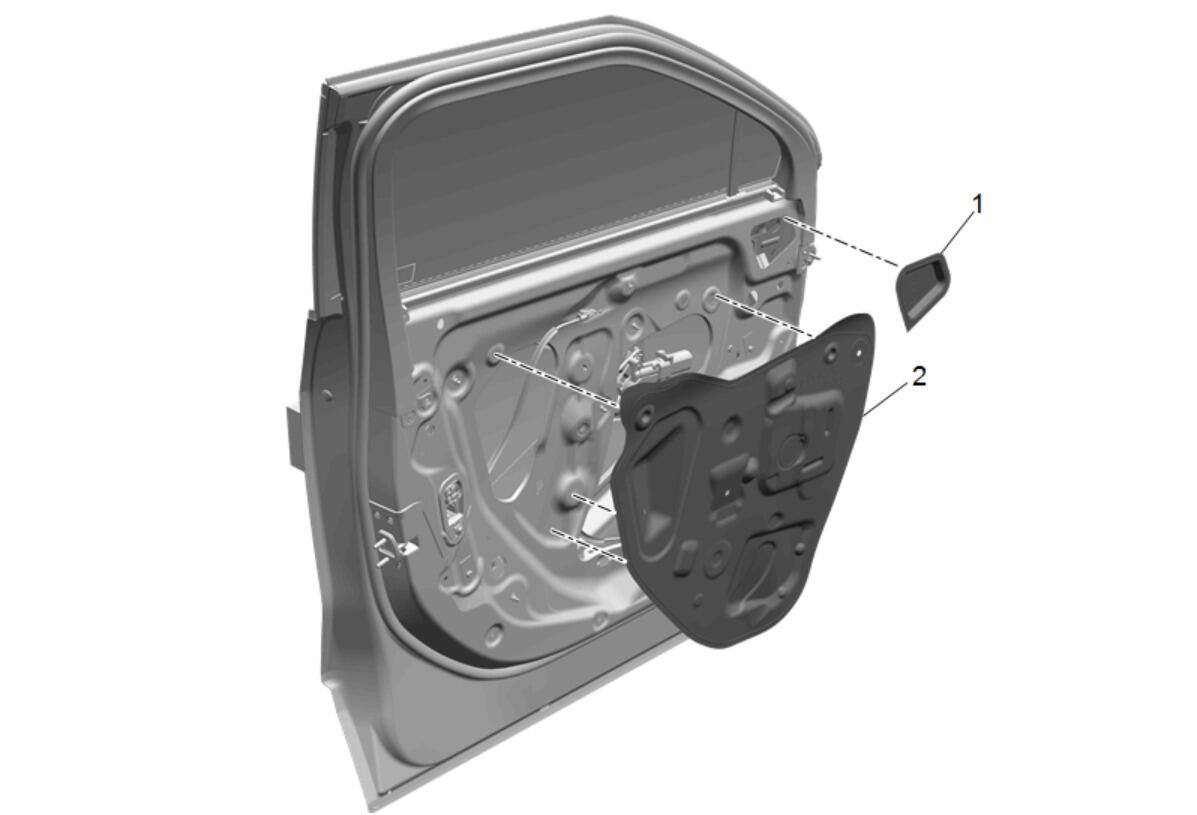

Callout	Component Name
WARNING: When installing the water deflector, ensure that the water deflector is securely fastened to the door inner before installing the door trim. An improper seal of the water deflector against the door inner may affect the ability of the front door pressure sensor to detect a side collision. This may result in improper airbag deployment and could cause bodily injury. Preliminary Procedure Front Side Door Trim Replacement
1	Front Side Door Water Deflector - Upper NOTE: When reinstalling water deflector ensure integral locators are installed properly and that water deflector is secured and leakproof.
2	Front Side Door Water Deflector - Lower Procedure Route front side door inside handle cable through hole in deflector assembly while removing it from the door. Supplemental Inflatable Restraint System Description and Operation NOTE: When reinstalling water deflector ensure integral locators are installed properly and that water deflector is secured and leakproof.

Callout

Component Name

WARNING:

When installing the water deflector, ensure that the water deflector is securely fastened to the door inner before installing the door trim. An improper seal of the water deflector against the door inner may affect the ability of the front door pressure sensor to detect a side collision. This may result in improper airbag deployment and could cause bodily injury.

Preliminary Procedure Front Side Door Trim Replacement

Front Side Door Water Deflector - Upper

NOTE:

When reinstalling water deflector ensure integral locators are installed properly and that water deflector is secured and leakproof.

Front Side Door Water Deflector - Lower

Procedure

Route front side door inside handle cable through hole in deflector assembly while removing it from the door.
Supplemental Inflatable Restraint System Description and Operation

NOTE:

When reinstalling water deflector ensure integral locators are installed properly and that water deflector is secured and leakproof.
