Engine Support Fixture

WARNING: This page is about a different variant/trim than selected.

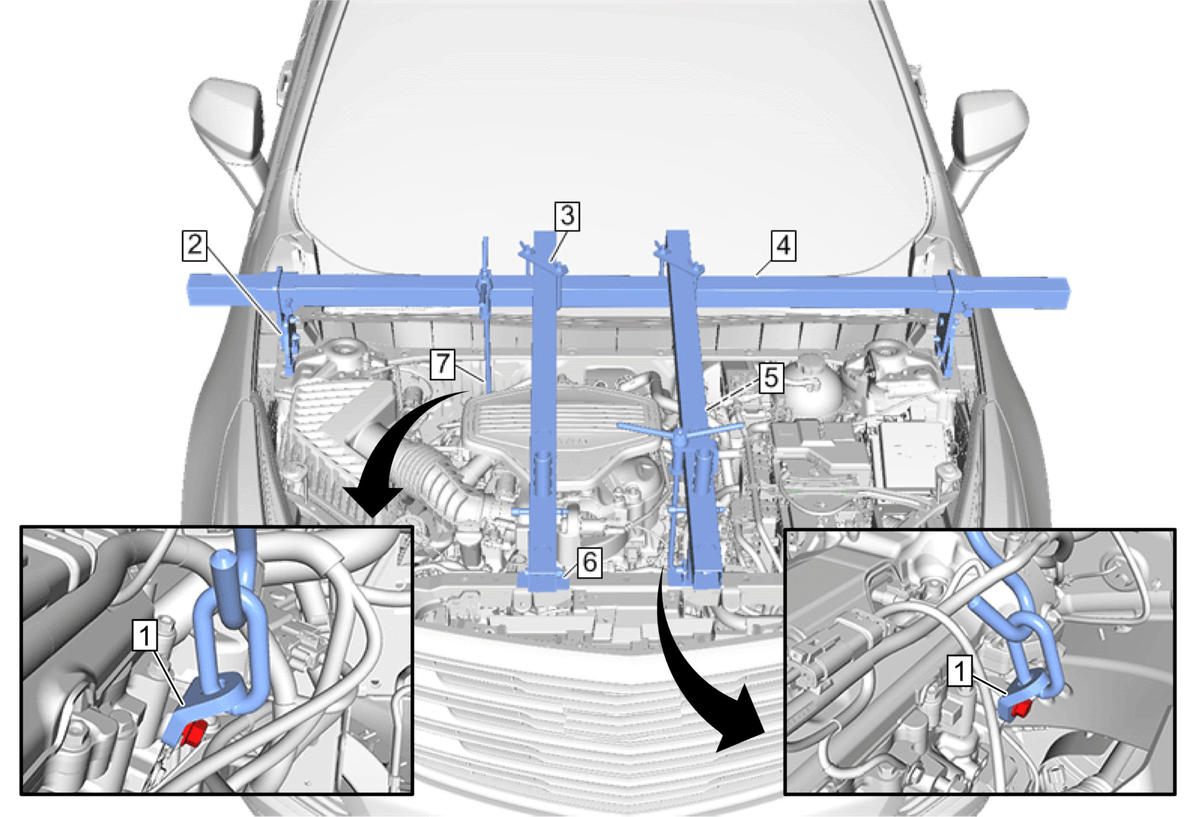

Fig 1: Identifying Engine Support Fixture Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Hood Replacement Air Cleaner Outlet Duct Replacement Air Cleaner Assembly Replacement Intake Air Splash Shield Replacement Special Tools EN-28467-300 Engine Support Fixture Adapters EN-36857 Engine Lift Bracket EN-51007-1 Main Support Beam EN-51007-3 Radiator Support Beam EN-51007-4 Clamp EN-51007-5 Support Leg, Front EN-51007-6 Hook EN-52059 Engine Support Fixture Adapter Bolt - M10 Equivalent regional tools: Special Tools
1	EN-36857 Engine Lift Bracket [2x] Procedure CAUTION: Refer to Fastener Caution . Use EN-52059 Engine Support Fixture Adapter Bolt - M10 to install a EN-36857 bracket to the right and left cylinder head in the location shown. Tighten the bolt to 65 N.m (48 lb ft).
2	EN-28467-300 Engine Support Fixture Adapters Procedure Install the EN-28467-300 Engine Support Fixture Adapters to frame as shown.
3	EN-51007-4 Clamp
4	EN-51007-1 Main Support Beam
5	EN-51007-3 Radiator Support Beam
6	EN-51007-5 Support Leg, Front
7	EN-51007-6 Hook
