Air Cleaner Assembly Replacement

WARNING: This page is about a different variant/trim than selected.

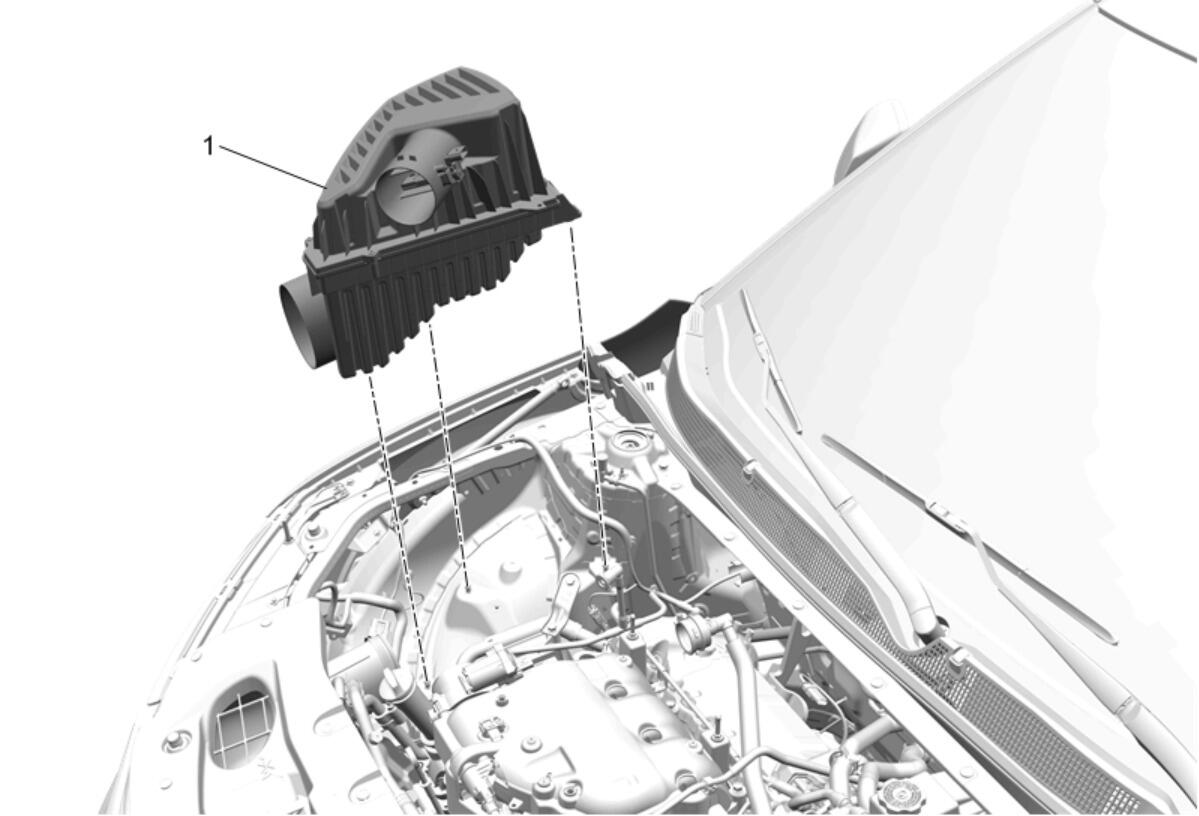

GM5142910Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Air Cleaner Outlet Duct Replacement
  2. Disconnect the electrical connector.
  3. Disconnect the wire harness retainer from air cleaner assembly.
1 Air Cleaner Assembly

Procedure

  1. Remove the air cleaner housing from the retainers.
  2. Transfer parts as necessary.
