Front Bumper Shutter Replacement

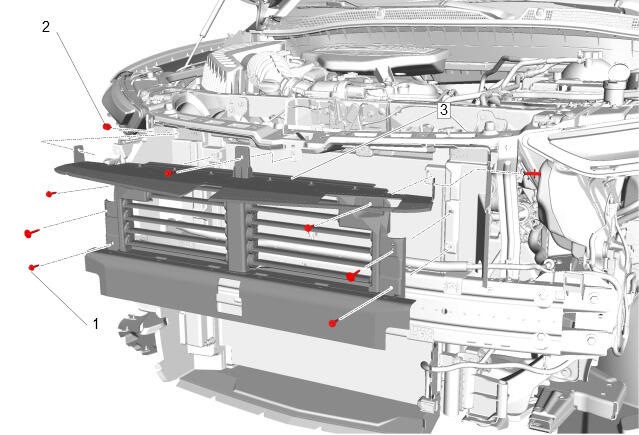

GM5135013Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Bumper Fascia Support Brace Replacement
1 Front Bumper Shutter Bolt [7x]
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Radiator Support Baffle Retainer {If equipped} [2x]
3 Front Bumper Shutter

Procedure

  1. Disconnect the electrical connector.
  2. Transfer components as necessary.
