Front Bumper Fascia Support Brace Replacement

Courtesy of GENERAL MOTORS COMPANY

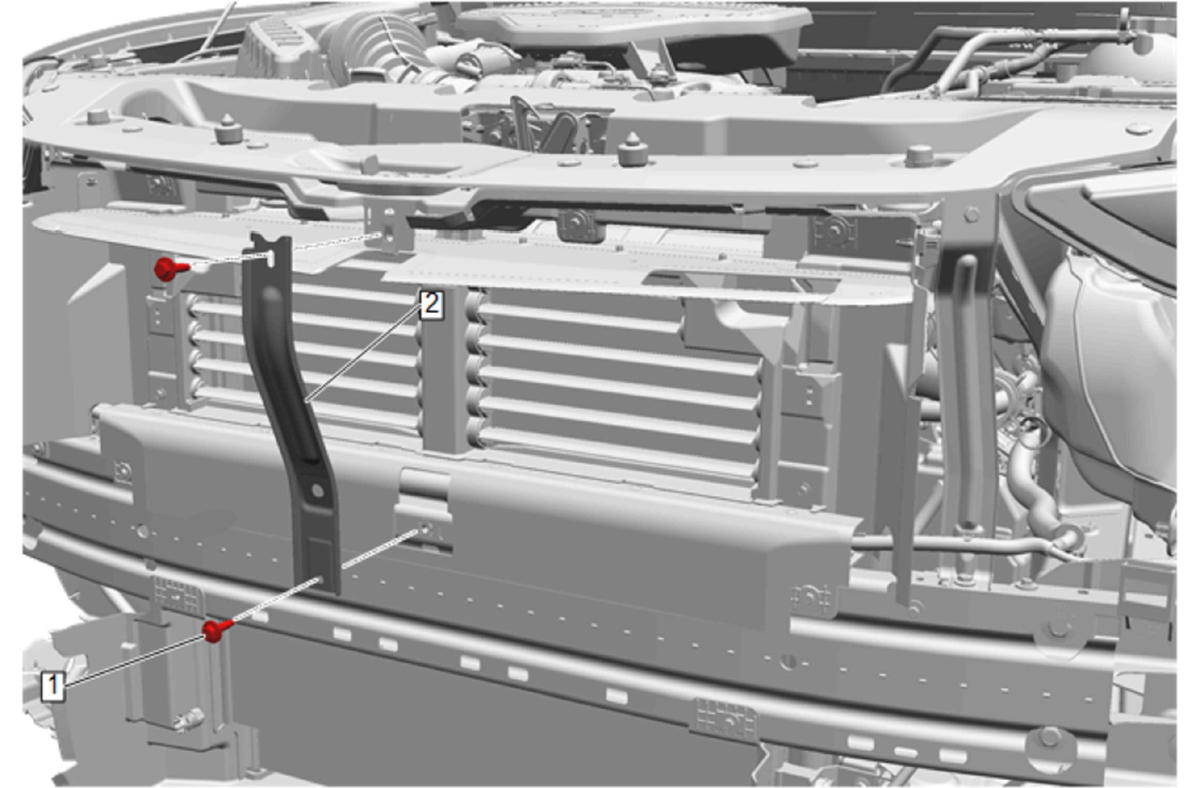

Callout	Component Name
Preliminary Procedure  Front Bumper Fascia Removal and Installation
1	Front Bumper Fascia Support Brace Bolt [2x] CAUTION: Fastener Caution Tighten  9 N.m (80 lb in)
2	Front Bumper Fascia Support Brace
