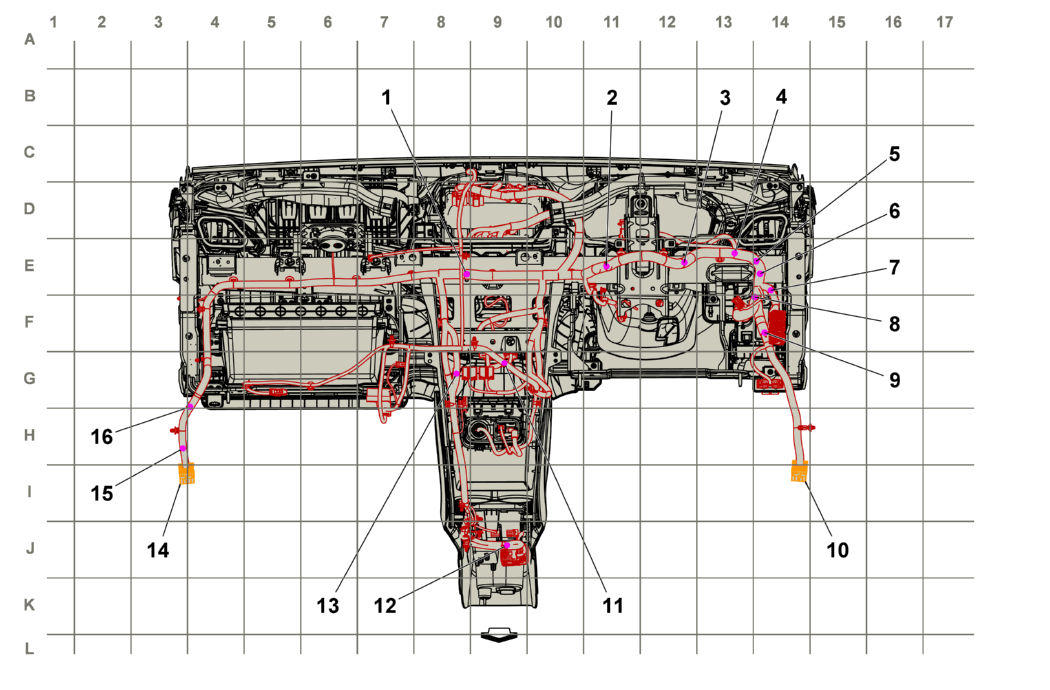

Instrument Panel Harness Routing - Behind Instrument Panel Compartment (LHD)
Instrument Panel Harness Routing - Behind Instrument Panel Compartment (LHD)
| Harness Name | Callout |
|---|---|
| J220 Instrument Panel Harness | 1 |
| J212 Instrument Panel Harness | 2 |
| J210 Instrument Panel Harness | 3 |
| J205 Instrument Panel Harness | 4 |
| J203 Instrument Panel Harness | 5 |
| J202 Instrument Panel Harness | 6 |
| J204 Instrument Panel Harness | 7 |
| J206 Instrument Panel Harness | 8 |
| J200 Instrument Panel Harness | 9 |
| X200 Instrument Panel Harness to Body Harness X200 Instrument Panel Harness to Body Harness | 10 |
| J217 Instrument Panel Harness | 11 |
| J222 Instrument Panel Harness | 12 |
| J221 Instrument Panel Harness | 13 |
| X201 Instrument Panel Harness to Body Harness X201 Instrument Panel Harness to Body Harness | 14 |
| J224 Instrument Panel Harness | 15 |
| J223 Instrument Panel Harness | 16 |
