Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Support the transmission using a suitable jack.
  2. Remove the battery tray. Battery Tray Replacement (LTG)
  3. Remove the Engine Wiring Harness Fuse Block Bracket. Engine Wiring Harness Fuse Block Bracket Replacement

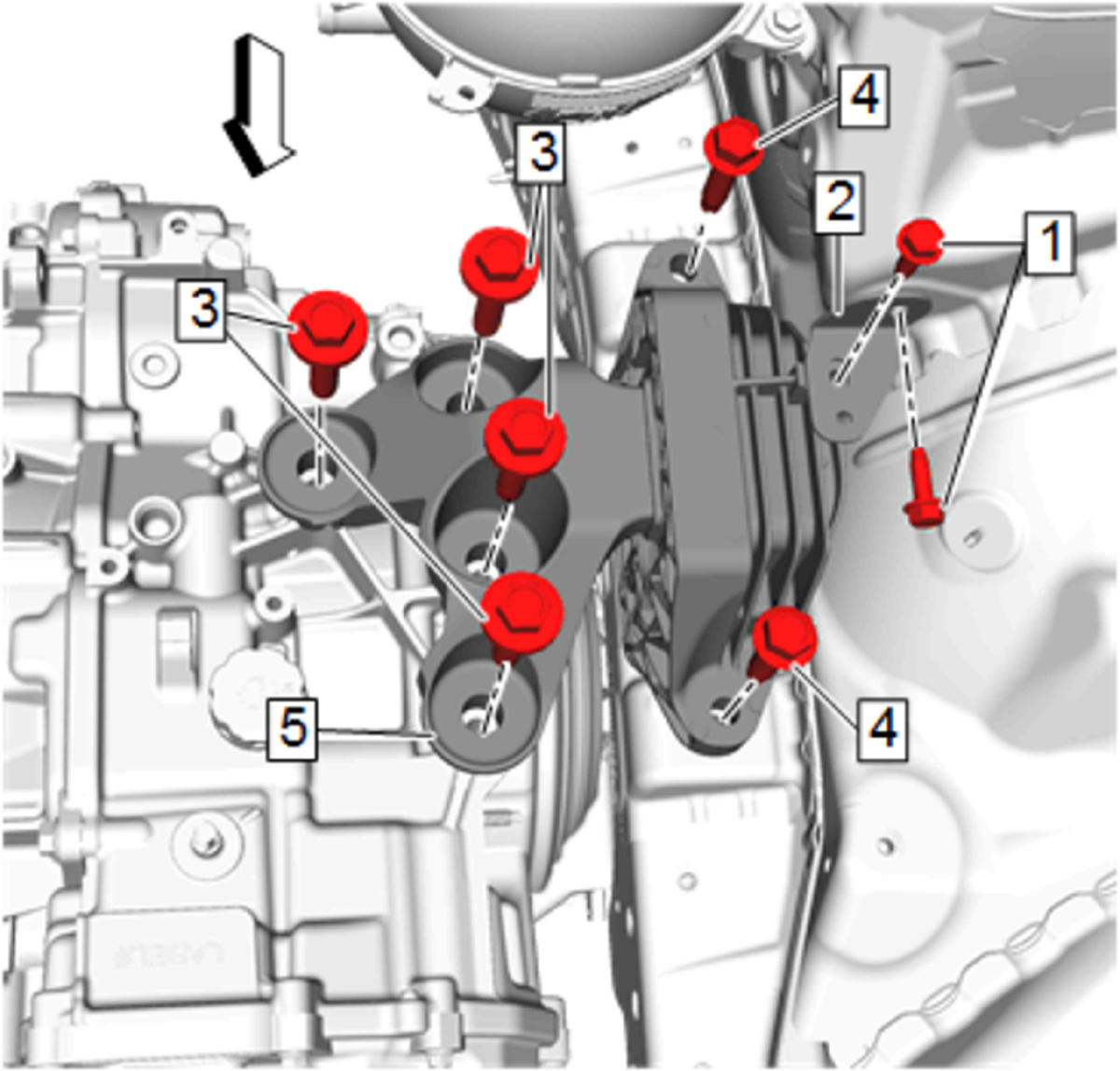

  4. GM4940174Courtesy of GENERAL MOTORS COMPANY

    Engine Mount Brace Bolt (1) - Remove [2x]

  5. Remove the transmission mount bracket (2) from the vehicle.
  6. Transmission Mount Transmission Side Bolt (3) - Remove and DISCARD [4x]
  7. Transmission Mount Bolt (4) - Remove [2x]
  8. Remove the transmission mount (5) from the vehicle.
