Engine Wiring Harness Fuse Block Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

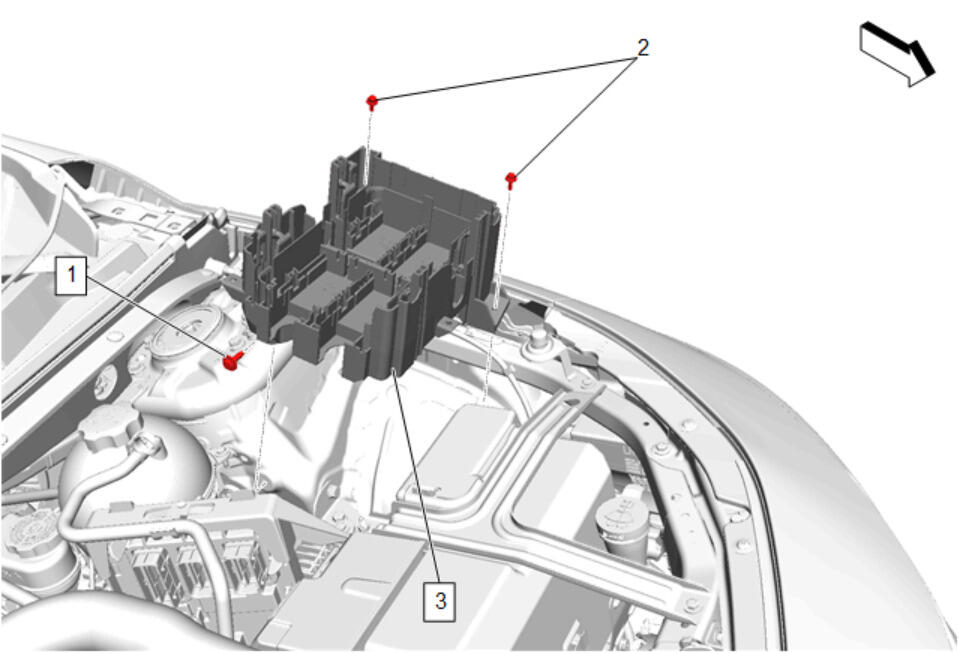

Callout	Component Name
Preliminary Procedures Engine Wiring Harness Junction Block Replacement Reposition the wiring harness connectors and retainers.
1	Fuse Block Bracket Bolt CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Engine Wiring Harness Fuse Block Bracket Bolt [2x] Tighten 9 N.m (80 lb in)
3	Engine Wiring Harness Fuse Block Bracket
