Temperature Valve Actuator Replacement - Right Side (CJ2 C4P)

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

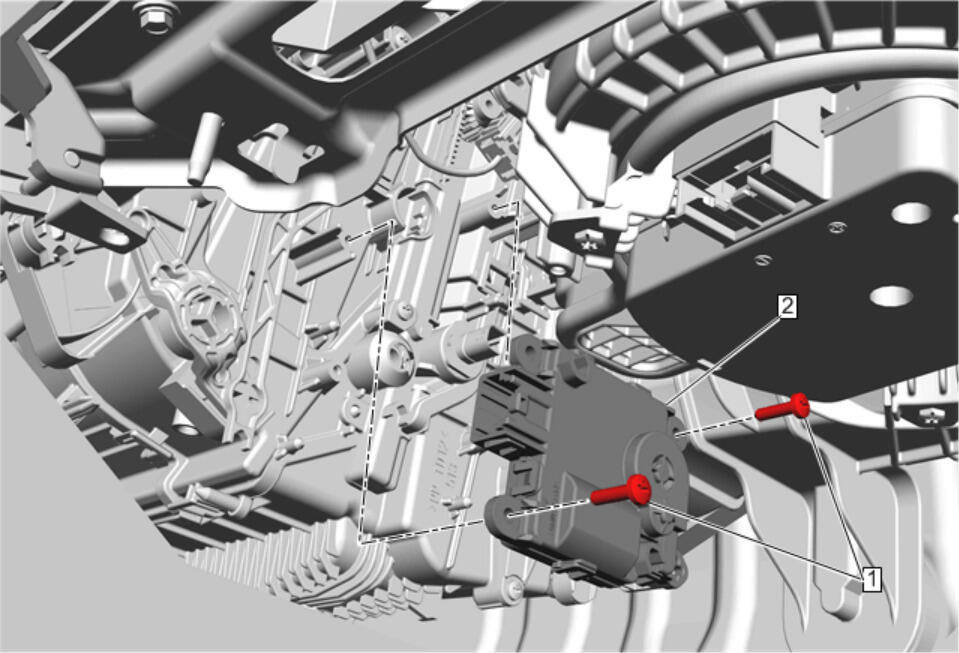

Callout	Component Name
Preliminary Procedures Instrument Panel Compartment Replacement Floor Front Air Outlet Duct Replacement - Right Side
1	Temperature Valve Actuator Fastener [2x] CAUTION: Refer to Fastener Caution . Tighten 1.0 N.m (9 lb in)
2	Temperature Valve Actuator - Right Side Procedure Disconnect the electrical connector. Perform the actuator calibration procedure. Actuator Recalibration

Callout

Component Name

Preliminary Procedures

Instrument Panel Compartment Replacement
Floor Front Air Outlet Duct Replacement - Right Side

Temperature Valve Actuator Fastener [2x]

CAUTION:

Refer to Fastener Caution .

Tighten
1.0 N.m (9 lb in)

Temperature Valve Actuator - Right Side

Procedure

Disconnect the electrical connector.
Perform the actuator calibration procedure. Actuator Recalibration
