Floor Front Air Outlet Duct Replacement - Right Side
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

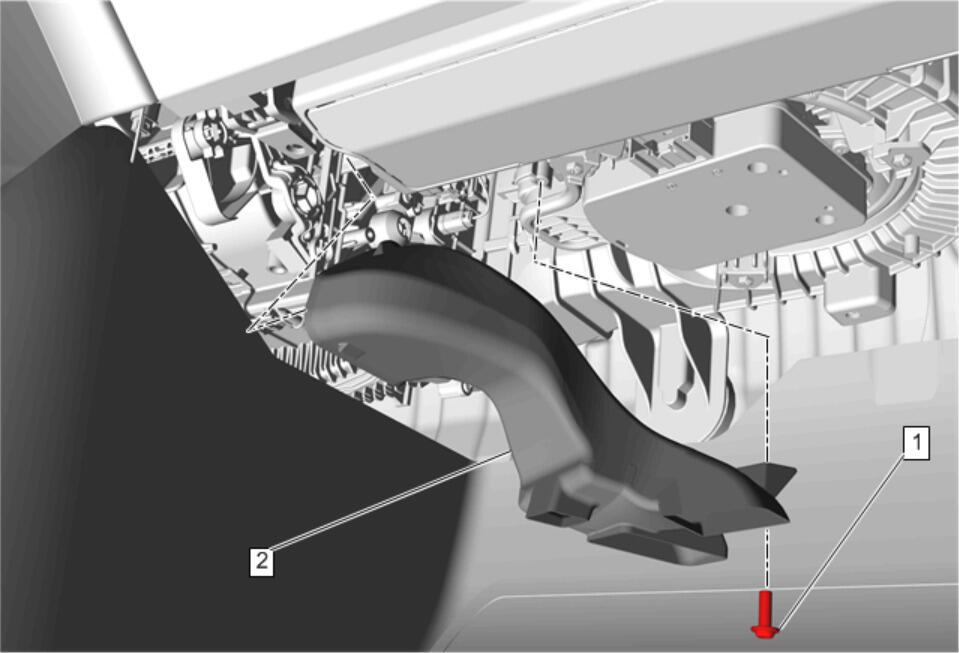

| Callout | Component Name |
|---|---|
| Preliminary Procedure Instrument Panel Lower Trim Panel Insulator Replacement |
|
| 1 | Floor Front Air Outlet Duct Bolt
CAUTION:
Refer to Fastener Caution . Tighten 1.5 N.m (13 lb in) |
| 2 | Floor Front Air Outlet Duct - Right Side |
