Outside Rearview Mirror Housing Upper Cover Replacement
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

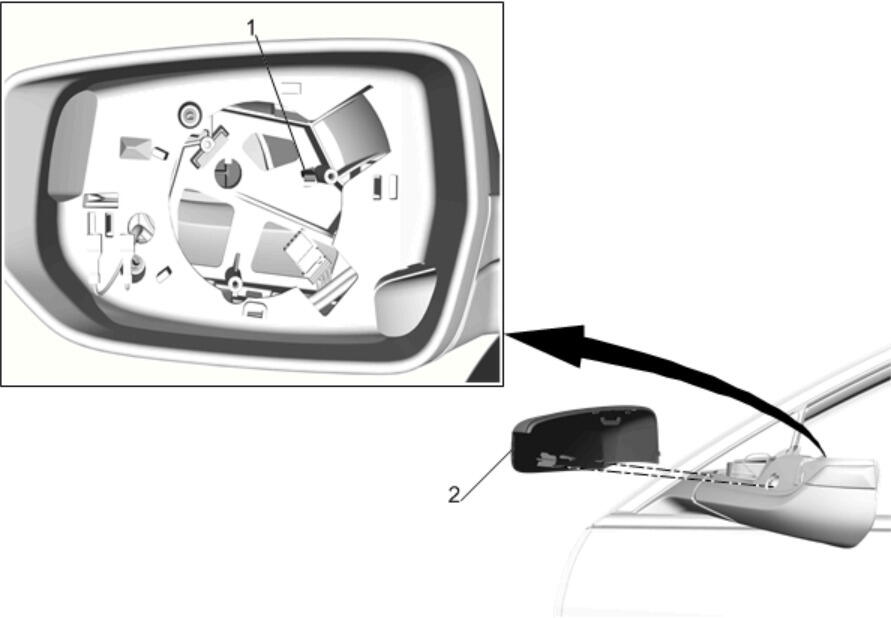

| Callout | Component Name |
|---|---|
| Preliminary Procedure Outside Rearview Mirror Actuator Replacement |
|
| 1 | Outside Rearview Mirror Upper Housing Retainer Clip Procedure Using the appropriate tool, release the retainer clip to remove the outside rearview mirror housing upper cover from the outside rearview mirror housing. |
| 2 | Outside Rearview Mirror Upper Housing Cover
NOTE:
Inspect the outside rearview mirror for proper operation before installing the door trim panel. |
