Outside Rearview Mirror Actuator Replacement
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

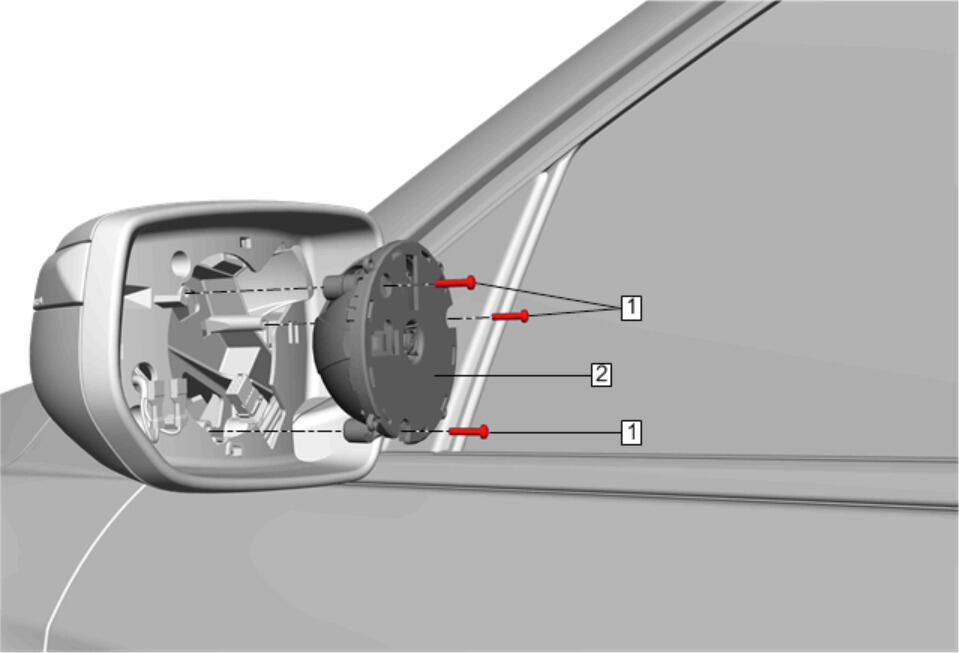

| Callout | Component Name |
|---|---|
| Preliminary Procedure Outside Rearview Mirror Glass Replacement |
|
| 1 | Outside Rearview Mirror Inner Actuator Fastener [3x]
CAUTION:
Refer to Fastener Caution . Procedure Disconnect the electrical connector. Tighten 0.8 N.m (7 lb in) |
| 2 | Outside Rearview Mirror Inner Actuator |
