Windshield Washer Solvent Container Replacement
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
| Callout |
Component Name |
|
Preliminary Procedures
- Windshield Washer Solvent Container Filler Tube Replacement
- Front Bumper Fascia Replacement
- Place a clean suitable drain pan under the windshield washer pump area to recover the windshield washer solvent when the windshield washer pump hose is disconnected.
- Disconnect the windshield washer pump hose.
- Disconnect the electrical connector.
|

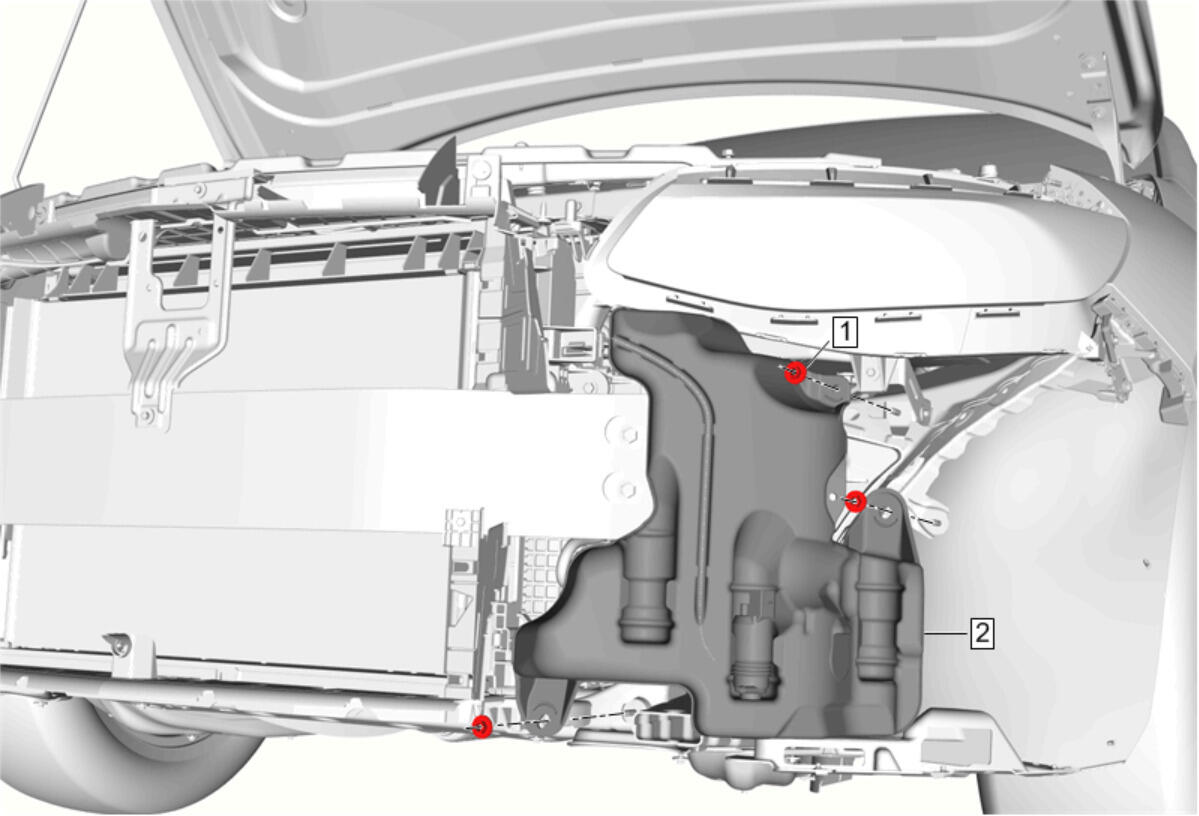

| 1 |
Windshield Washer Solvent Container Nut [3x]
Tighten
9 N.m (80 lb in) |
| 2 |
Windshield Washer Solvent Container Procedure
- Remove the windshield washer solvent container from the three studs on the front compartment front outer side rail.
- Empty the windshield washer solvent into a suitable clean container.
- Transfer components as necessary.
|
