Windshield Washer Solvent Container Filler Tube Replacement
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
| Callout |
Component Name |
Preliminary Procedure
Open and support the hood. |
| 1 |

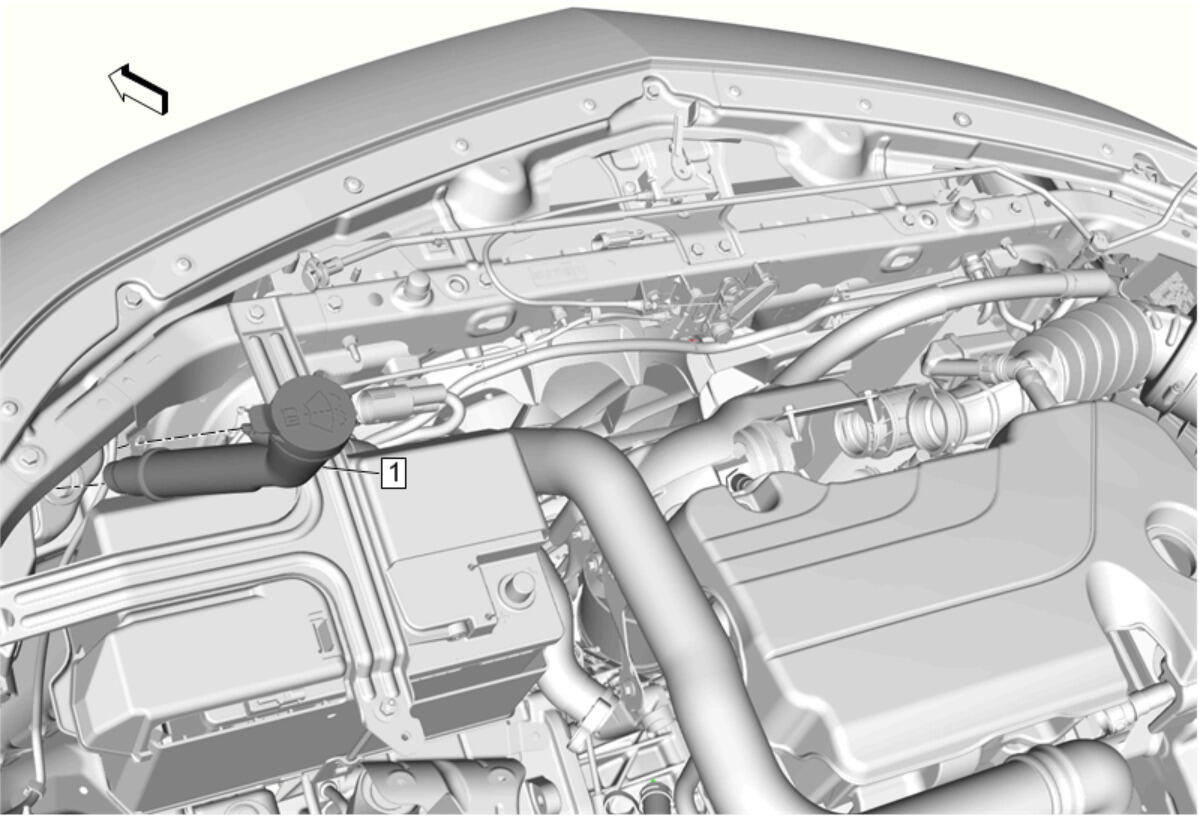

Windshield Washer Solvent Container Filler Tube
Procedure
Pull upward on the solvent container filler tube in order to disconnect the filler tube from the windshield washer solvent container grommet. |
