Windshield Washer Solvent Container Filler Tube Seal Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Windshield Washer Solvent Container Filler Tube Replacement

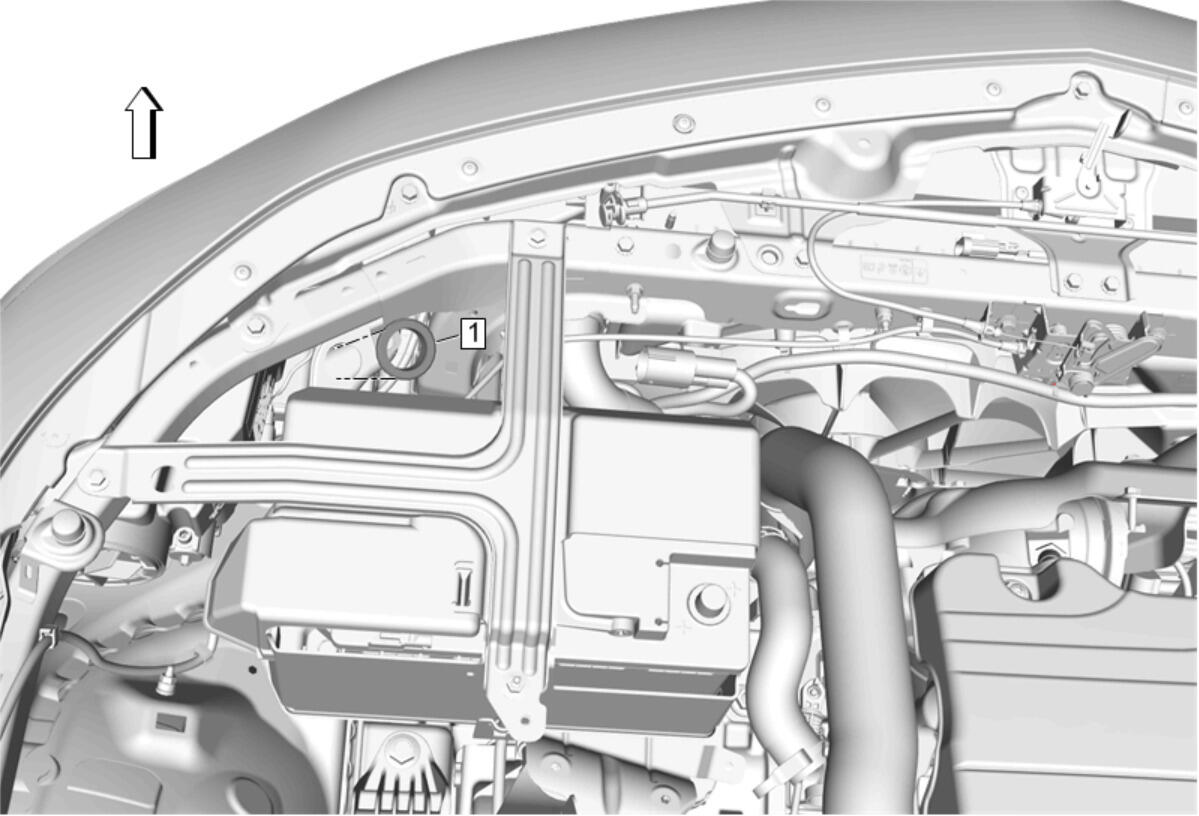

1	Windshield Washer Solvent Container Filler Tube Seal Procedure Carefully squeeze the seal while using a flat-bladed tool to pry upward under the edge of the seal. When installing a new seal, use full strength windshield washer fluid as a lubricant on the seal. Place the seal to the windshield washer solvent container. Use the palm of the hand to seat the seal into the windshield washer solvent container.

Callout

Component Name

Preliminary Procedure
Windshield Washer Solvent Container Filler Tube Replacement

Windshield Washer Solvent Container Filler Tube Seal

Procedure

Carefully squeeze the seal while using a flat-bladed tool to pry upward under the edge of the seal.
When installing a new seal, use full strength windshield washer fluid as a lubricant on the seal.
Place the seal to the windshield washer solvent container.
Use the palm of the hand to seat the seal into the windshield washer solvent container.
