Windshield Washer Pump Hose Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Windshield Washer Solvent Container Filler Tube Replacement Front Bumper Fascia Replacement Battery Tray Replacement (LFV)Battery Tray Replacement (LTG)

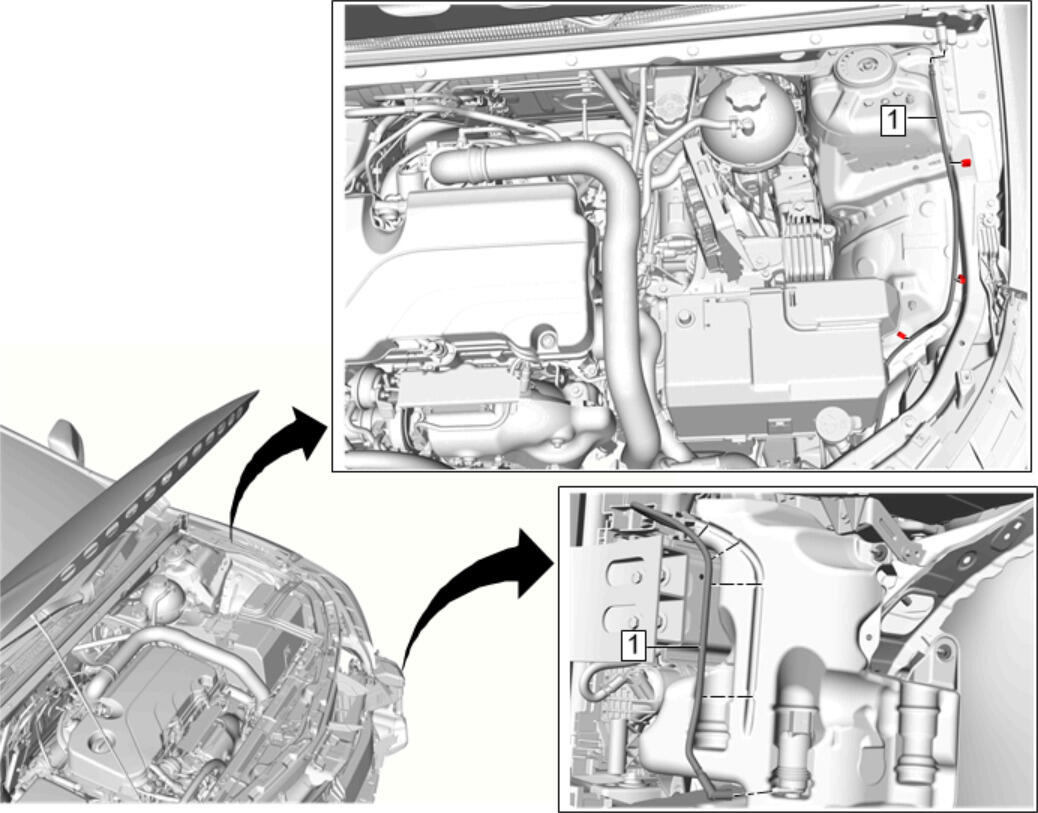

1	Windshield Washer Pump Hose Procedure Disconnect the windshield washer pump hose from the windshield washer pump. Release the windshield washer pump hose from the [4x] retaining clips. Disconnect the windshield washer pump hose from the windshield washer nozzle hose. Pull the windshield washer pump hose up through the engine compartment and remove from the vehicle.

Callout

Component Name

Preliminary Procedures

Windshield Washer Solvent Container Filler Tube Replacement
Front Bumper Fascia Replacement
Battery Tray Replacement (LFV)Battery Tray Replacement (LTG)

Windshield Washer Pump Hose

Procedure

Disconnect the windshield washer pump hose from the windshield washer pump.
Release the windshield washer pump hose from the [4x] retaining clips.
Disconnect the windshield washer pump hose from the windshield washer nozzle hose.
Pull the windshield washer pump hose up through the engine compartment and remove from the vehicle.
