Windshield Washer Pump Grommet Replacement
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

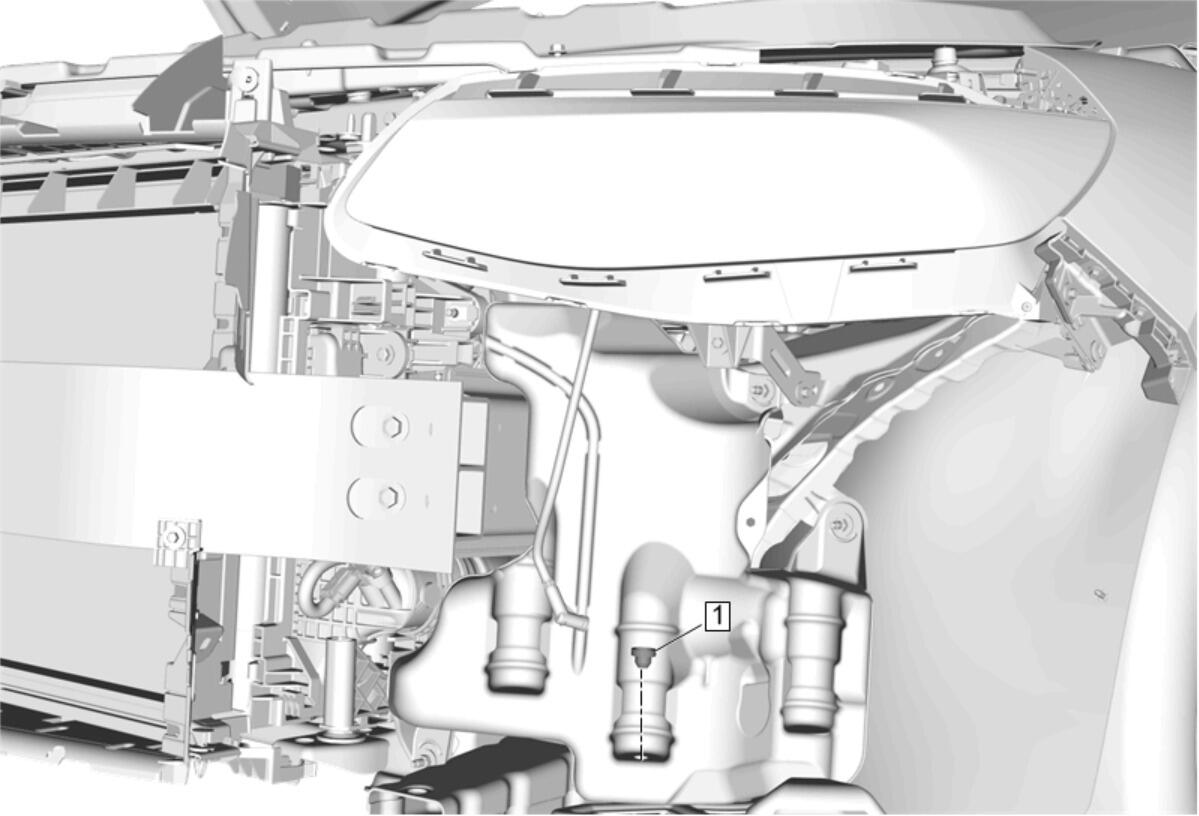

| Callout |
Component Name |
Preliminary Procedure
Windshield Washer Pump Replacement |
| 1 |
Windshield Washer Pump Grommet Procedure
- Carefully squeeze the grommet while using a flat-bladed tool to pry upward under the edge of grommet.
- When installing a new grommet, use full strength windshield washer fluid as a lubricant on grommet.
- Place the grommet to the windshield washer solvent container.
- Push the grommet into the windshield washer solvent container until fully seated.
|
