Windshield Washer Pump Replacement
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

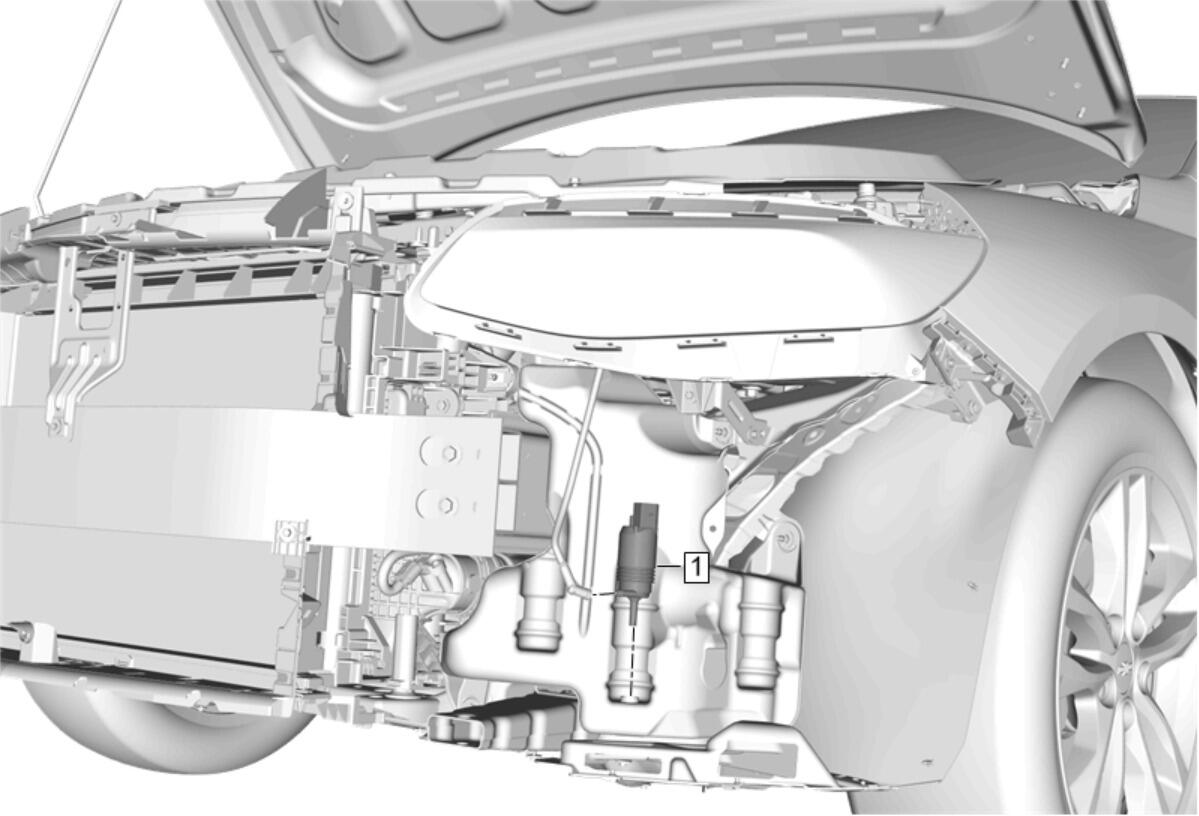

| Callout |
Component Name |
|
Preliminary Procedures
- Front Bumper Fascia Replacement
- Place a clean suitable drain pan under the windshield washer pump area to recover the windshield washer solvent when the windshield washer pump hose is disconnected.
- Disconnect the windshield washer pump hose.
- Disconnect the electrical connector.
|
| 1 |
Windshield Washer Pump Procedure
- Using appropriate tools, place under each side of the washer pump, twist and lift in opposite directions to disengage the windshield washer pump from the windshield washer solvent container and grommet. Remove and DISCARD the grommet.
- Install a NEW windshield washer pump grommet upon replacement of the windshield washer pump.
|
