Windshield Washer Nozzle Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

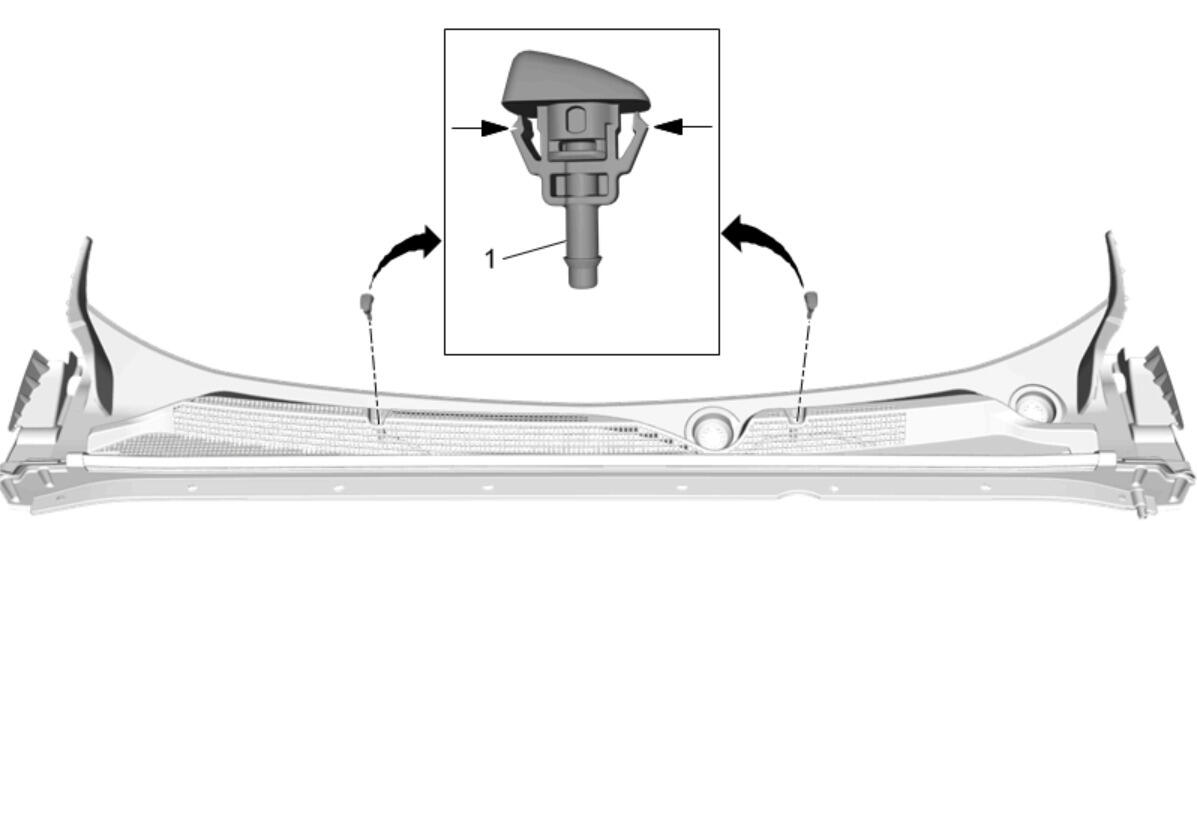

GM4210536Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Air Inlet Grille Panel Replacement
1 Windshield Washer Nozzle

Procedure

  1. Disconnect the windshield washer nozzle hose at the windshield washer nozzle being serviced.
  2. Compress the locking tabs on the windshield washer nozzle.
  3. Push the windshield washer nozzle upward from the air inlet grille panel.
  4. Remove the windshield washer nozzle from the air inlet grille panel.
