Turn Bulb Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

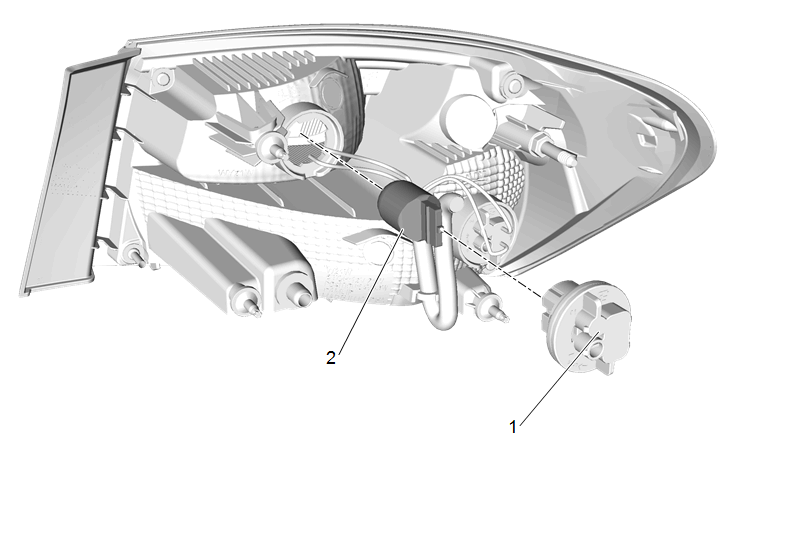

Callout	Component Name
Preliminary Procedure Rear Body Structure Stop Lamp Replacement
1	Turn Bulb Socket Procedure Rotate the bulb socket counterclockwise to remove it from the lamp housing.
2	Turn Bulb Procedure Disconnect the electrical connector. Pull the bulb straight from the lamp socket.

Callout

Component Name

Preliminary Procedure
Rear Body Structure Stop Lamp Replacement

Turn Bulb Socket
Procedure
Rotate the bulb socket counterclockwise to remove it from the lamp housing.

Turn Bulb

Procedure

Disconnect the electrical connector.
Pull the bulb straight from the lamp socket.
