Rear Body Structure Stop Lamp Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

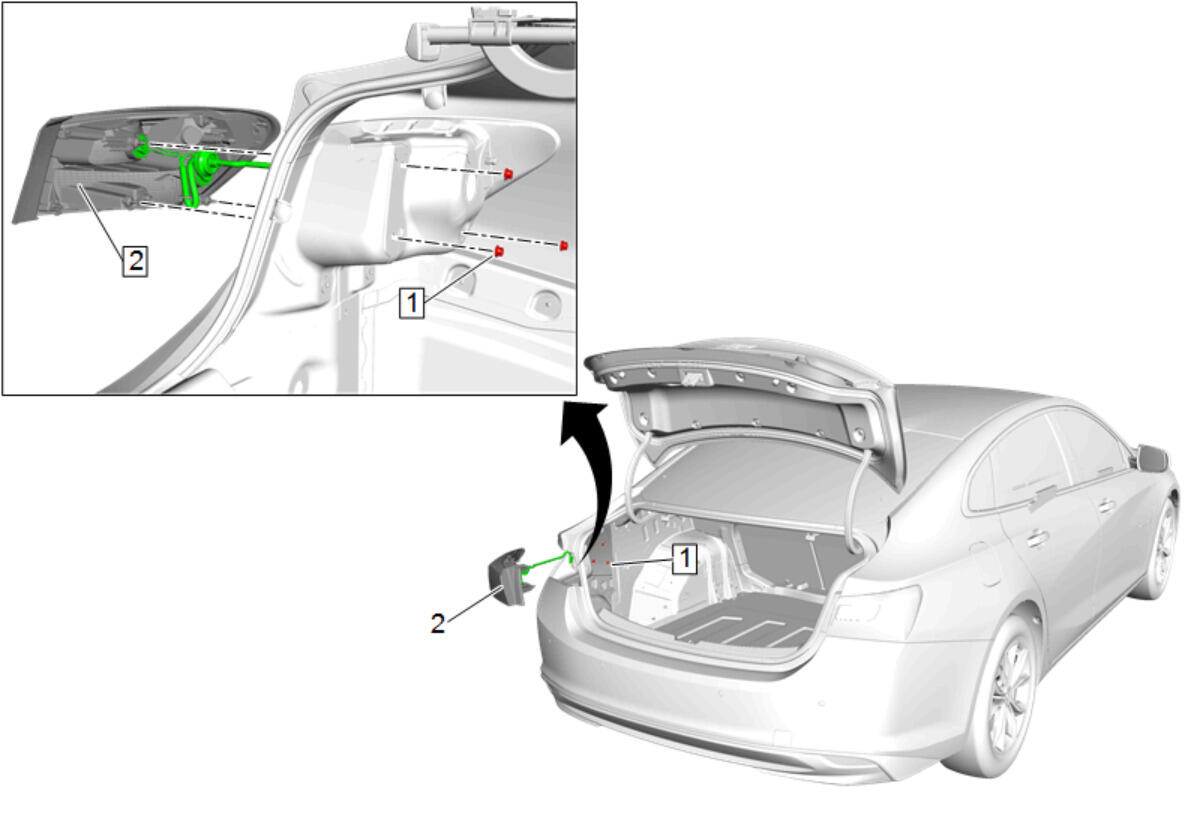

Callout	Component Name
Preliminary Procedure Remove appropriate rear compartment side trim: For right side, refer to Rear Compartment Side Trim Replacement - Right Side (Without HP4)Rear Compartment Side Trim Replacement - Right Side (With HP4) . For left side, refer to Rear Compartment Side Trim Replacement - Left Side (Without HP4)Rear Compartment Side Trim Replacement - Left Side (With HP4) .
1	Rear Body Structure Stop Lamp Nut[3x] CAUTION: Refer to Fastener Caution . Tighten 4.7 N.m (42 lb in)
2	Rear Body Structure Stop Lamp Procedure Disconnect the electrical connector. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure
Remove appropriate rear compartment side trim:

For right side, refer to Rear Compartment Side Trim Replacement - Right Side (Without HP4)Rear Compartment Side Trim Replacement - Right Side (With HP4) .
For left side, refer to Rear Compartment Side Trim Replacement - Left Side (Without HP4)Rear Compartment Side Trim Replacement - Left Side (With HP4) .

Rear Body Structure Stop Lamp Nut[3x]

CAUTION:

Refer to Fastener Caution .

Tighten
4.7 N.m (42 lb in)

Rear Body Structure Stop Lamp

Procedure

Disconnect the electrical connector.
Transfer components as necessary.
