Side Marker Lamp Bulb Replacement - Left Side (LKN)

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

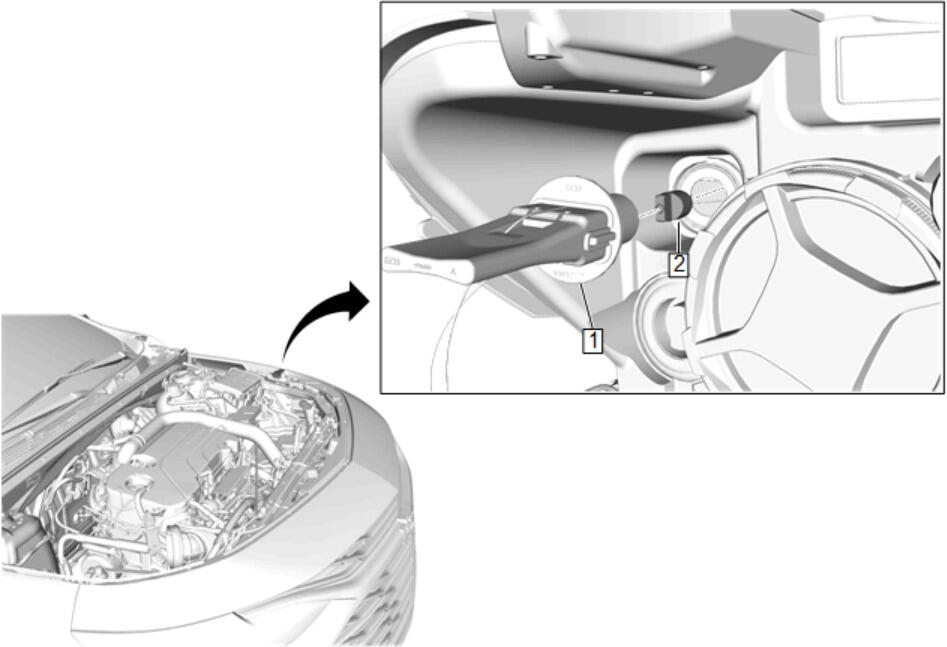

Callout	Component Name
Preliminary Procedure Engine Control Module Bracket Replacement Reposition windshield washer pump hose as needed. Windshield Washer Pump Hose Replacement
1	Front Side Marker lamp Bulb Socket Procedure Rotate the bulb socket a quarter turn counterclockwise and remove.
2	Front Side Marker Lamp Bulb Procedure Pull the bulb straight from the lamp socket.

Callout

Component Name

Preliminary Procedure

Engine Control Module Bracket Replacement
Reposition windshield washer pump hose as needed. Windshield Washer Pump Hose Replacement

Front Side Marker lamp Bulb Socket
Procedure
Rotate the bulb socket a quarter turn counterclockwise and remove.

Front Side Marker Lamp Bulb
Procedure
Pull the bulb straight from the lamp socket.
