Headlamp Control Module Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Instrument Panel Center Air Outlet Duct Replacement Instrument Panel Knee Bolster Replacement

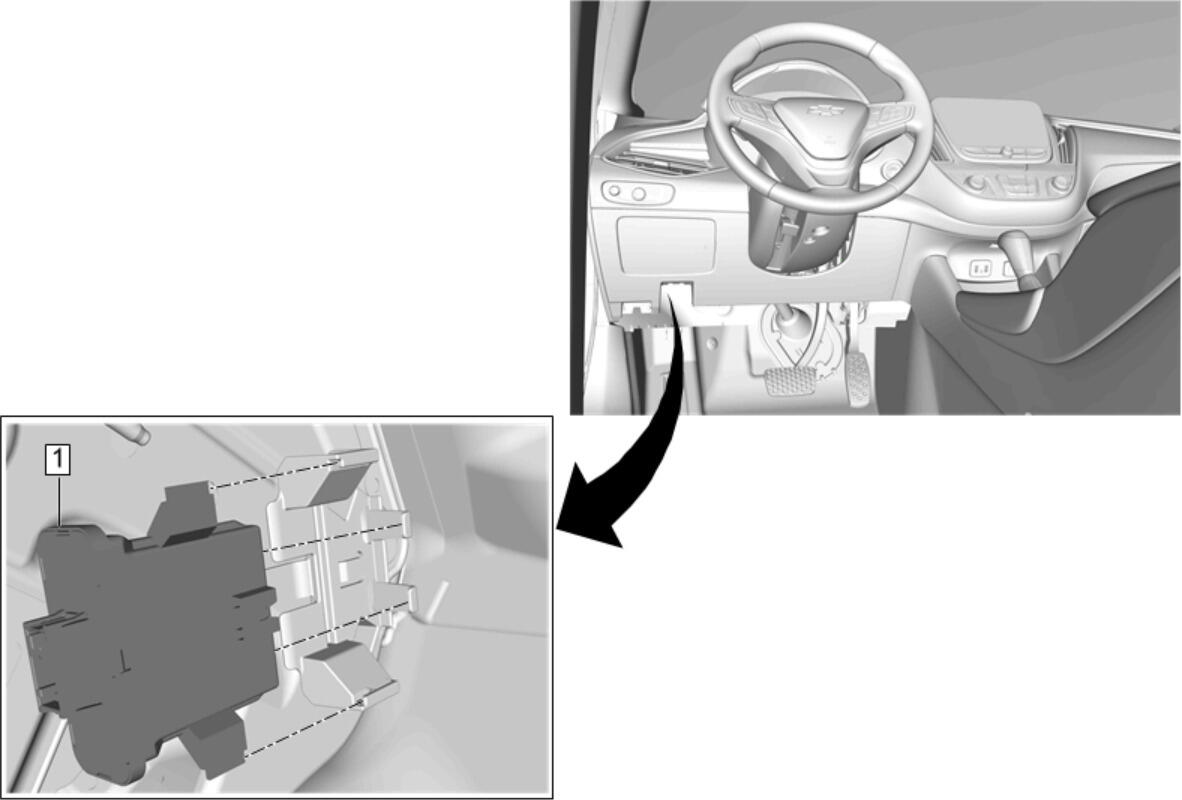

1	Headlamp Control Module Procedure Disconnect the electrical connector. Slide the module downward from the bracket. Transfer components as necessary. Control Module References for programming and setup information, if required.

Callout

Component Name

Preliminary Procedures

Instrument Panel Center Air Outlet Duct Replacement
Instrument Panel Knee Bolster Replacement

Headlamp Control Module

Procedure

Disconnect the electrical connector.
Slide the module downward from the bracket.
Transfer components as necessary.
Control Module References for programming and setup information, if required.
