Installation Procedure
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
- Install the transmission range selector lever cable to the vehicle.
Install the transmission range selector lever cable grommet (2) to the cowl panel.
- Install the grommet fasteners (1) and tighten to 6.5 N.m (58 lb in).

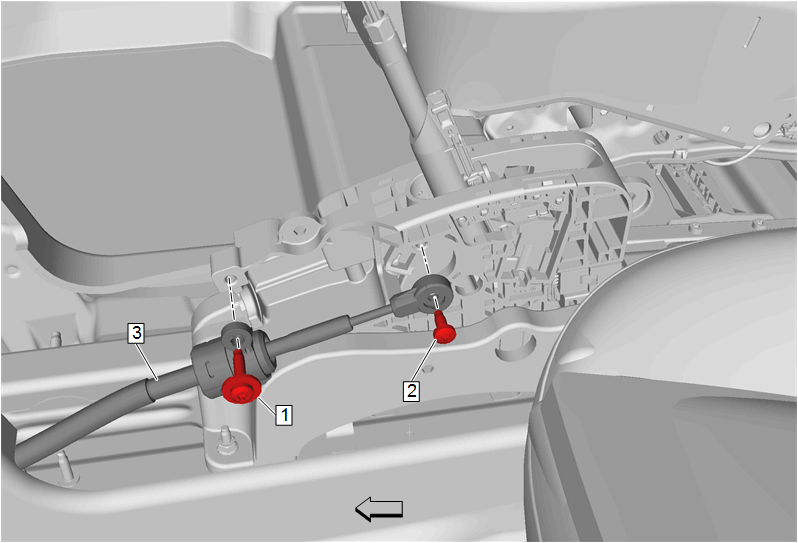

Install the transmission range selector lever screws (1, 2) and tighten to 9 N.m (80 lb in).
- Install the console. Front Floor Console Replacement

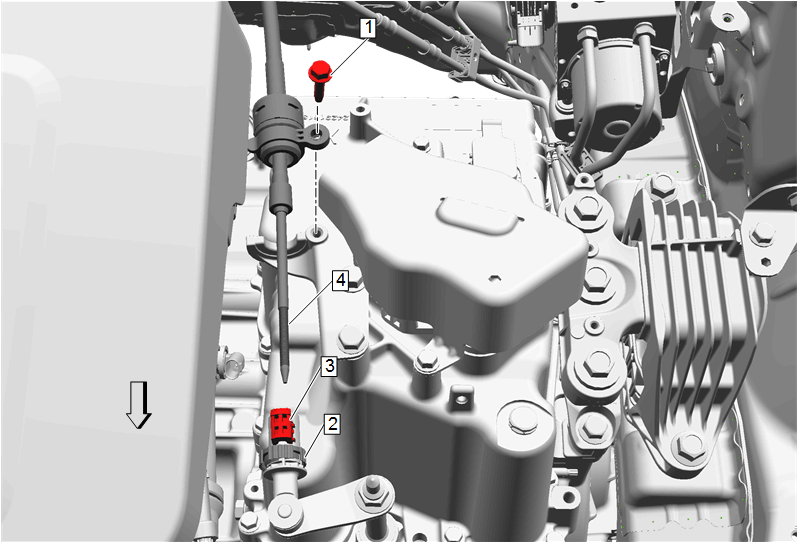

Install the range selector lever cable (4) in the automatic transmission range selector lever cable bracket.
- Install the transmission range selector lever screw (1) and tighten to 9 N.m (80 lb in).
- Verify that the range selector lever cable lever is in position "P" by turning the range selector lever cable lever counterclockwise.
Verify that the transmission control lever (1) is in position "P".
Depress the cable adjustment retainer (2) locking the retainer completely.
- Slide the retainer lock (1) rearward to cover the cable adjustment retainer (2).
- Check the transmission range select lever in all gear selections for proper operation.
CAUTION:
Refer to Fastener Caution .
