Turn Signal Switch Bracket Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

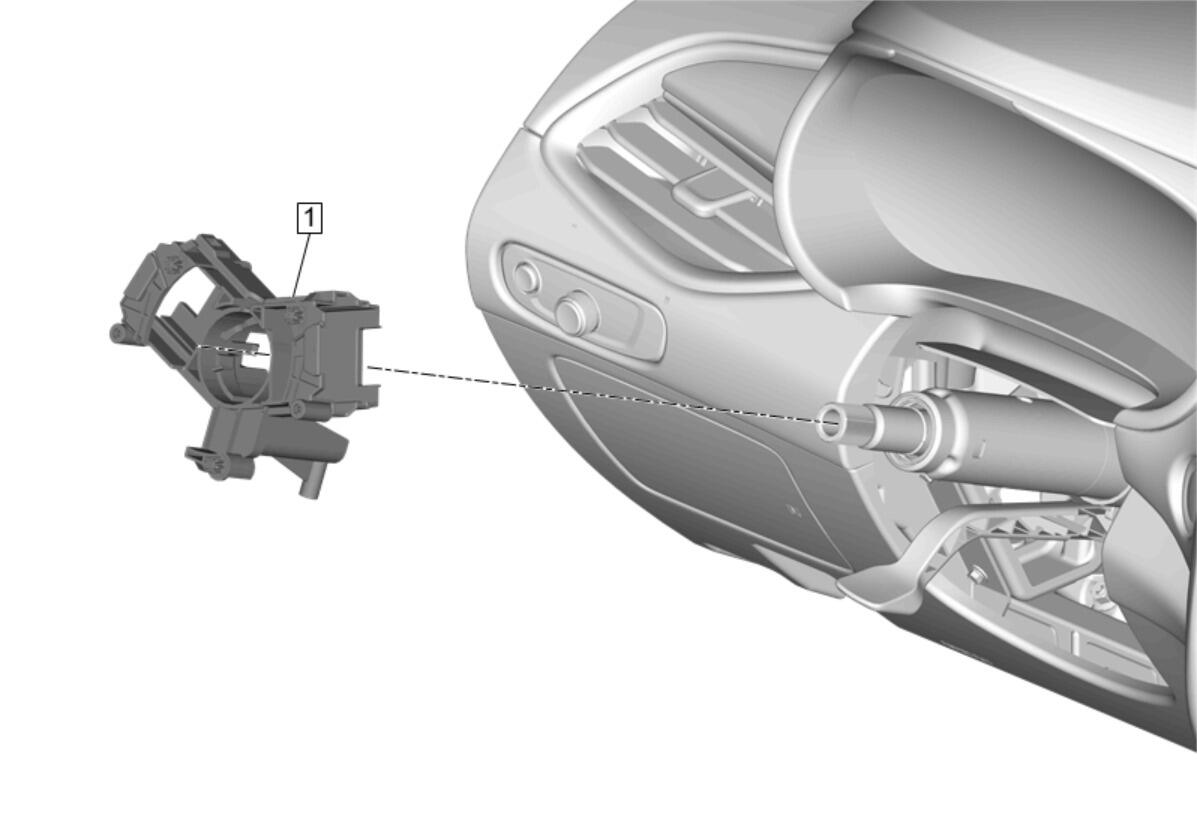

GM4193890Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Steering Wheel Airbag Coil Replacement
  2. Turn Signal Switch Replacement
  3. Windshield Wiper and Windshield Washer Switch Replacement
1 Turn Signal Switch Bracket
Procedure
Release the retaining tabs and remove the turn signal switch bracket from the steering column.
