Steering Wheel Airbag Coil Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Steering Wheel Replacement Steering Column Lower Trim Cover Replacement Reposition the steering column upper trim cover as necessary.

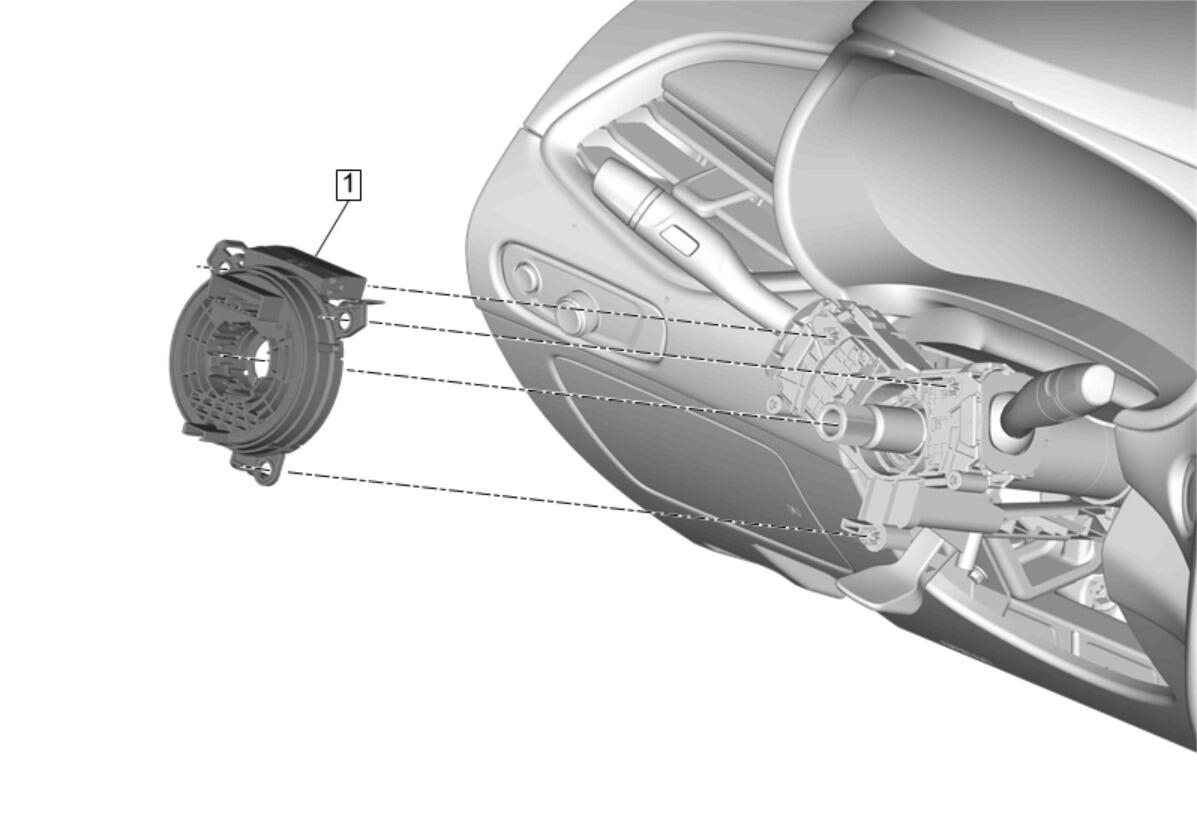

1	Steering Wheel Airbag Coil Procedure Disconnect the electrical connectors. Release the retaining tabs and remove the steering wheel airbag coil from the steering column. Ensure the steering wheel airbag coil is CENTERED during installation. Airbag Steering Wheel Module Coil Centering

Callout

Component Name

Preliminary Procedures

Steering Wheel Replacement
Steering Column Lower Trim Cover Replacement
Reposition the steering column upper trim cover as necessary.

Steering Wheel Airbag Coil

Procedure

Disconnect the electrical connectors.
Release the retaining tabs and remove the steering wheel airbag coil from the steering column.
Ensure the steering wheel airbag coil is CENTERED during installation. Airbag Steering Wheel Module Coil Centering
