Removal Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

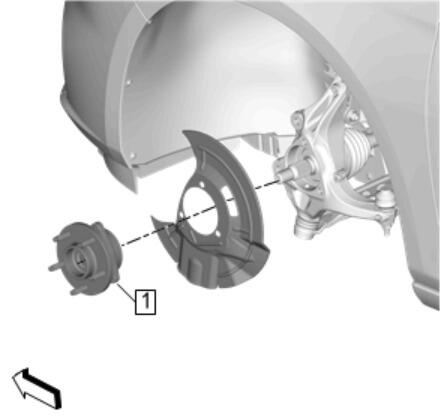

Front Wheel Bearing and Hub Assembly (1) - Remove - Front Wheel Bearing and Hub Replacement
Courtesy of GENERAL MOTORS COMPANY

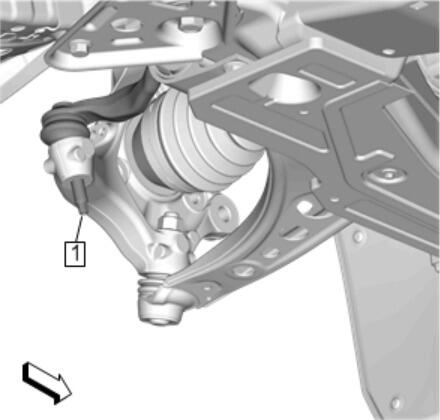

Steering Linkage Outer Tie Rod (1) @Steering Knuckle - Separate - Steering Linkage Outer Tie Rod Replacement
Courtesy of GENERAL MOTORS COMPANY

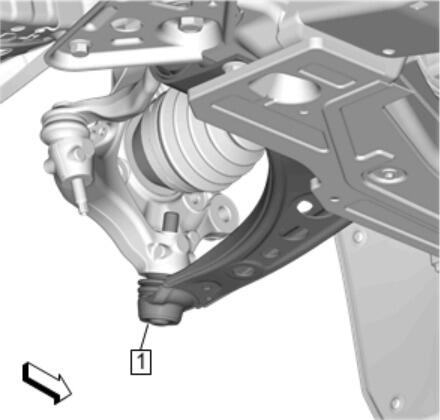

Front Lower Control Arm (1) @Steering Knuckle - Separate - Lower Control Arm Replacement
Courtesy of GENERAL MOTORS COMPANY

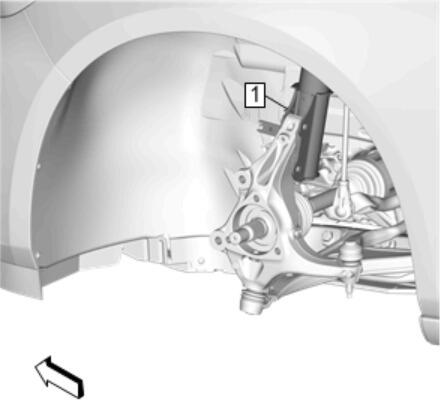

Strut Assembly (1) @Steering Knuckle - Separate - Strut Assembly Removal and Installation
Courtesy of GENERAL MOTORS COMPANY

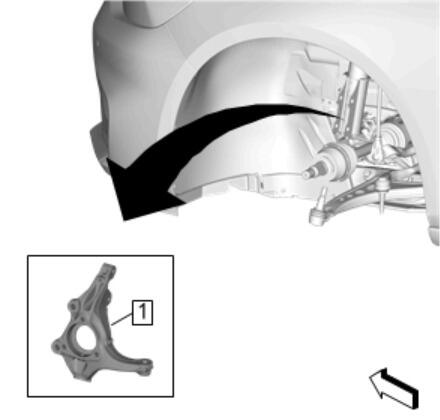

Remove the steering knuckle (1) from the vehicle.
