Front Wheel Bearing and Hub Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

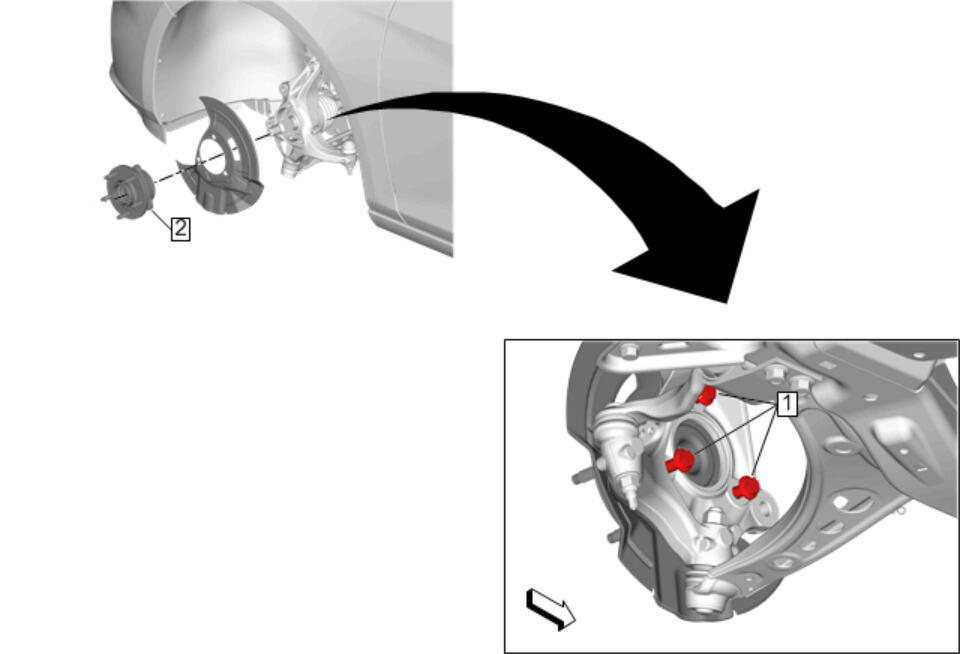

Callout	Component Name
Preliminary Procedures Front Wheel Speed Sensor@Steering Knuckle - Remove - Front Wheel Speed Sensor Replacement Front Wheel Drive Half Shaft@Front Wheel Bearing and Hub Assembly - Separate - Front Wheel Drive Half Shaft Replacement - Left Side (MKE)Front Wheel Drive Half Shaft Replacement - Left Side (M3E)Front Wheel Drive Half Shaft Replacement - Left Side (MRG) , or Front Wheel Drive Half Shaft Replacement - Right Side (LTG)Front Wheel Drive Half Shaft Replacement - Right Side (LKN)Front Wheel Drive Half Shaft Replacement - Right Side (LFV) Front Brake Rotor Replacement
1	Front Wheel Bearing and Hub Assembly Bolt [3x] CAUTION: Refer to Fastener Caution . CAUTION: This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component. Procedure Remove and DISCARD the bolts. Tighten First Pass: 100 N.m (74 lb ft) Final Pass: (60 - 75 degrees)
2	Front Wheel Bearing and Hub Assembly Procedure Apply grease evenly and ensure complete coverage to the steering knuckle bearing pilot bore only. Adhesives, Fluids, Lubricants, and Sealers NOTE: Avoid applying grease to any other machined surfaces, holes, or threads. Ensure the drain channel at the bottom of the bore is not blocked with grease or debris.

Callout

Component Name

Preliminary Procedures

Front Wheel Speed Sensor@Steering Knuckle - Remove - Front Wheel Speed Sensor Replacement
Front Wheel Drive Half Shaft@Front Wheel Bearing and Hub Assembly - Separate - Front Wheel Drive Half Shaft Replacement - Left Side (MKE)Front Wheel Drive Half Shaft Replacement - Left Side (M3E)Front Wheel Drive Half Shaft Replacement - Left Side (MRG) , or Front Wheel Drive Half Shaft Replacement - Right Side (LTG)Front Wheel Drive Half Shaft Replacement - Right Side (LKN)Front Wheel Drive Half Shaft Replacement - Right Side (LFV)
Front Brake Rotor Replacement

Front Wheel Bearing and Hub Assembly Bolt [3x]

CAUTION:

Refer to Fastener Caution .

CAUTION:

This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.

Procedure
Remove and DISCARD the bolts.
Tighten
First Pass: 100 N.m (74 lb ft)
Final Pass: (60 - 75 degrees)

Front Wheel Bearing and Hub Assembly
Procedure
Apply grease evenly and ensure complete coverage to the steering knuckle bearing pilot bore only. Adhesives, Fluids, Lubricants, and Sealers

NOTE:

Avoid applying grease to any other machined surfaces, holes, or threads. Ensure the drain channel at the bottom of the bore is not blocked with grease or debris.
