Installation Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Route the transmission fluid cooler outlet pipe into position.
Courtesy of GENERAL MOTORS COMPANY

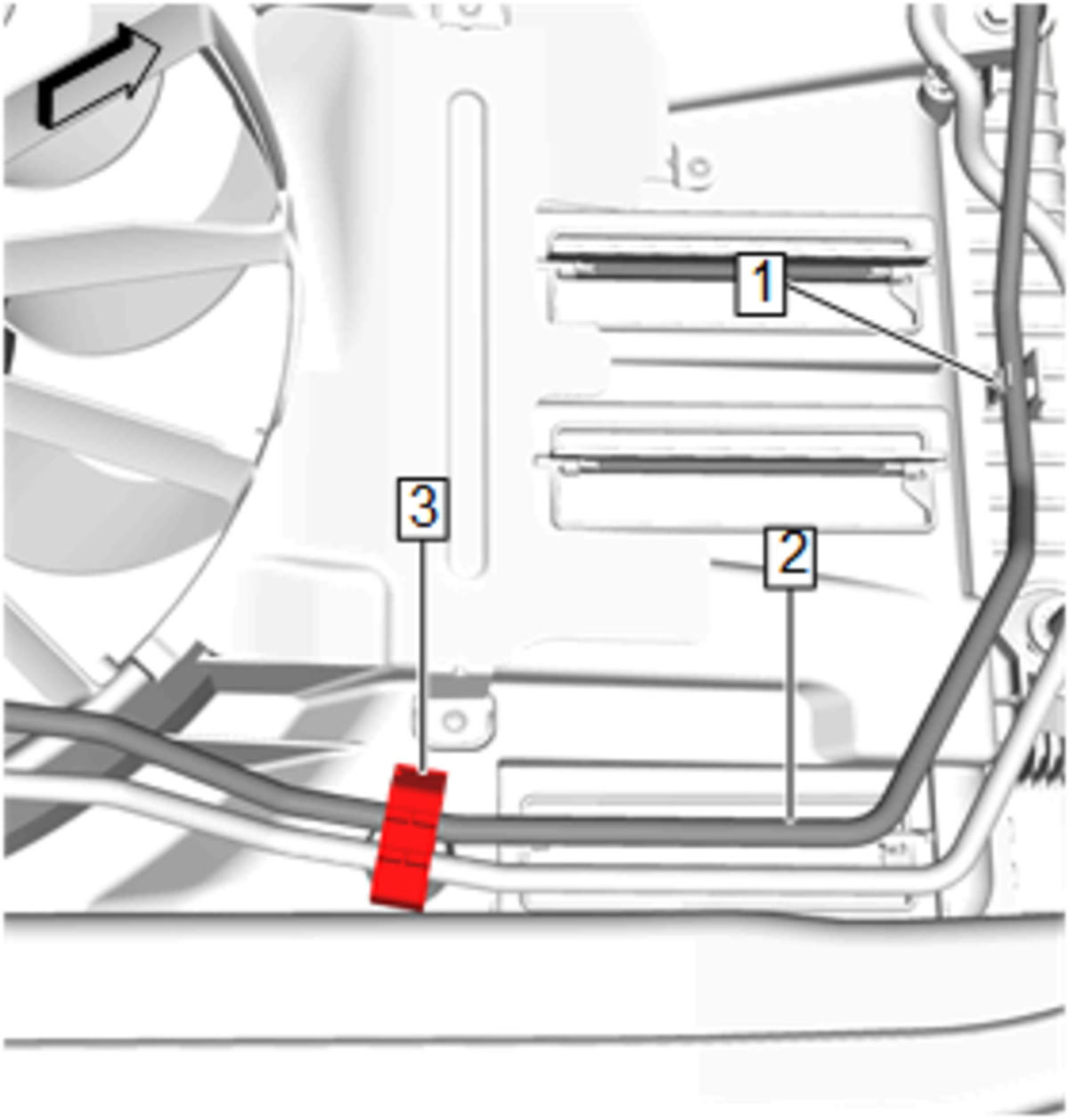

Transmission Fluid Cooler Outlet Pipe (2) @ Radiator Retainer (1) - Install
Transmission Fluid Cooler Outlet Pipe Clip (3) @ Radiator - Clip
Courtesy of GENERAL MOTORS COMPANY

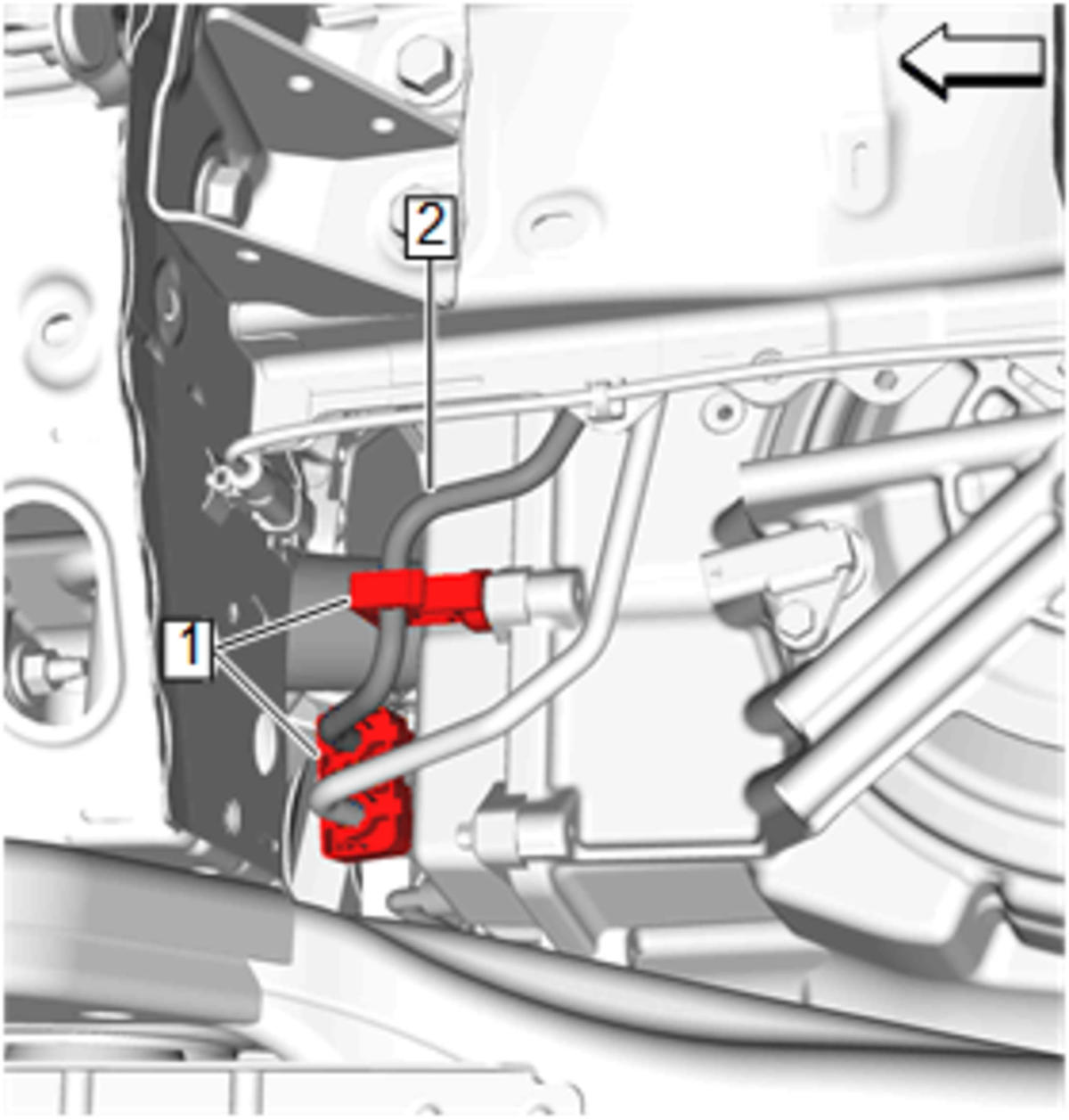

Transmission Fluid Cooler Outlet Pipe (2) @ Transmission Fluid Cooler Pipe Clip (1) - Install
Transmission Fluid Cooler Outlet Pipe Clip (1) @ Transmission - Clip [2x]
Courtesy of GENERAL MOTORS COMPANY

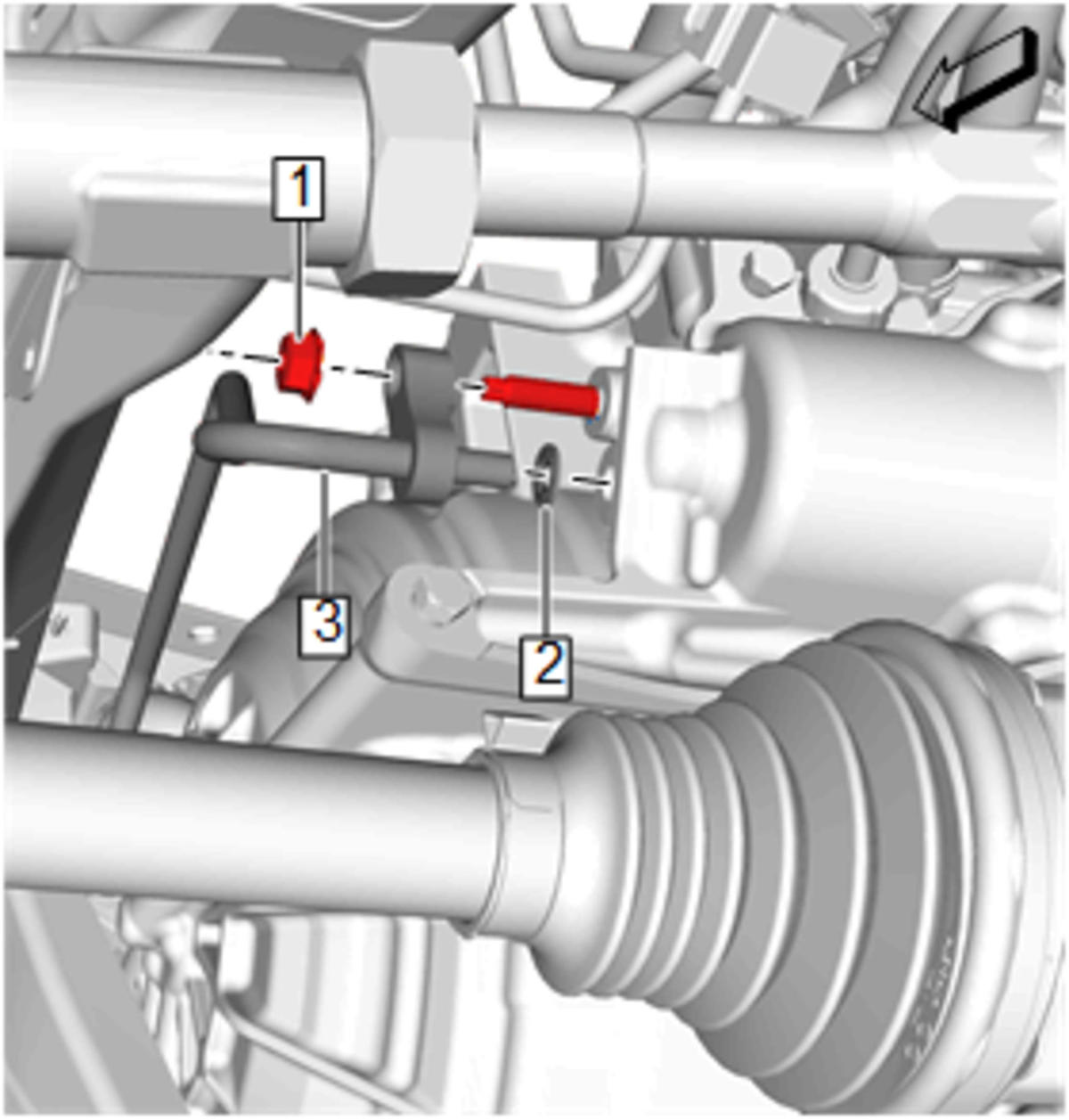

Install a NEW sealing washer. (2)
Transmission Fluid Cooler Outlet Pipe (3) @ Transmission - Install
Transmission Fluid Cooler Outlet Pipe Nut (1) @ Transmission - Install and tighten 22 N.m (16 lb ft)
Front Wheelhouse Liner-Left Side - Install - FRONT WHEELHOUSE LINER REPLACEMENT - LEFT SIDE
Charge Air Cooler Inlet Air Tube - Install - Charge Air Cooler Inlet Air Tube Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Compartment Splash Shield (3) - Install - Front Compartment Splash Shield Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Compartment Air Deflector (4) - Install - Front Compartment Air Deflector Replacement
Courtesy of GENERAL MOTORS COMPANY

Battery Tray Support (2) - Install - Battery Tray Support Replacement
Courtesy of GENERAL MOTORS COMPANY

Battery Tray (2) - Install - Battery Tray Replacement (LTG)
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Remove caps and covers on transmission fluid cooler pipe connection points before installing pipe.

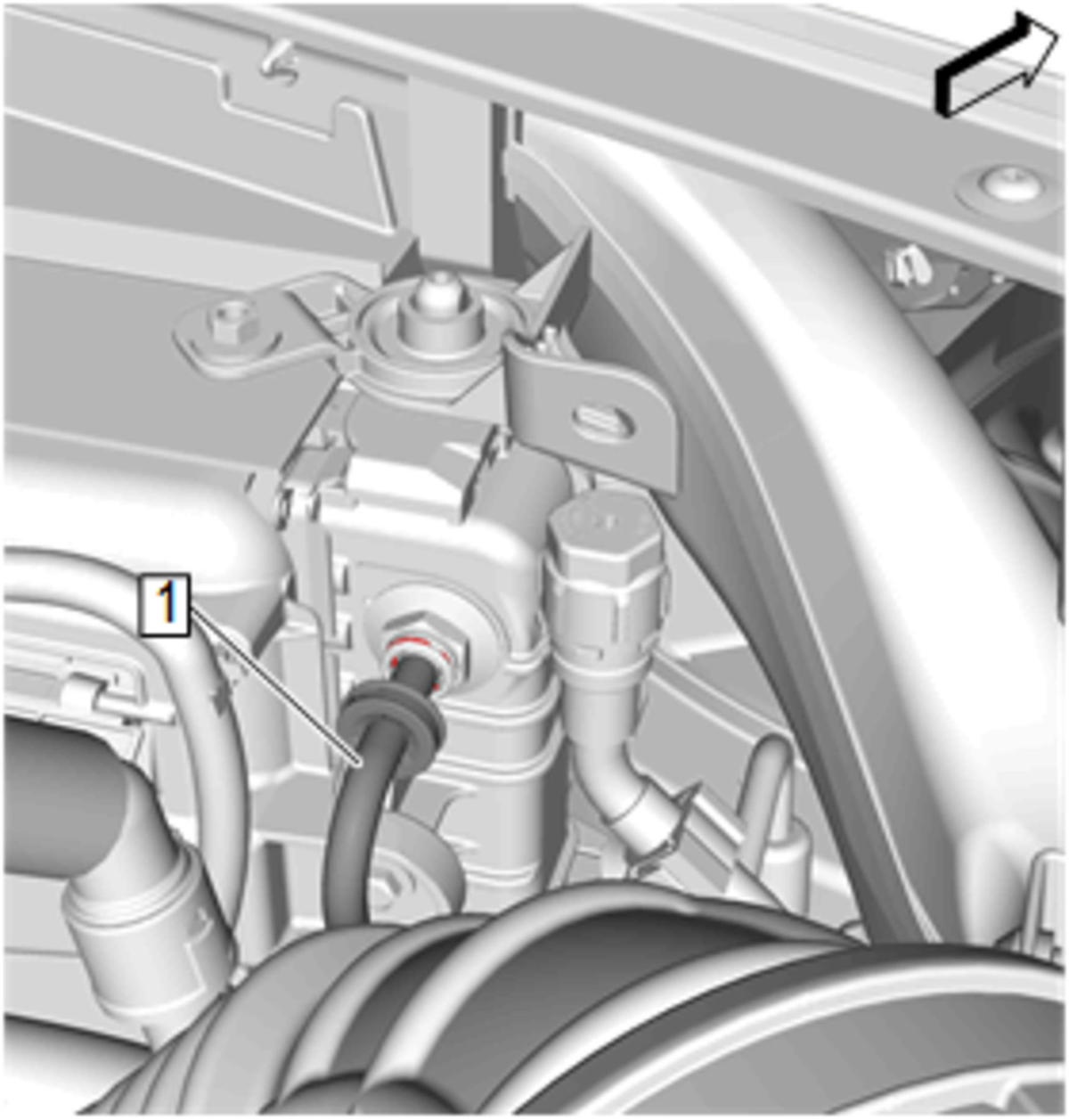

Transmission Fluid Cooler Outlet Pipe (1) @ Radiator - Install - Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection
Courtesy of GENERAL MOTORS COMPANY

Air Cleaner Outlet Duct (3) - Install - Air Cleaner Outlet Duct Replacement
Fill the transmission to the proper level with NEW transmission fluid. TRANSMISSION FLUID DRAIN AND FILL
Inspect for transmission fluid leaks.
