Battery Tray Support Replacement
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

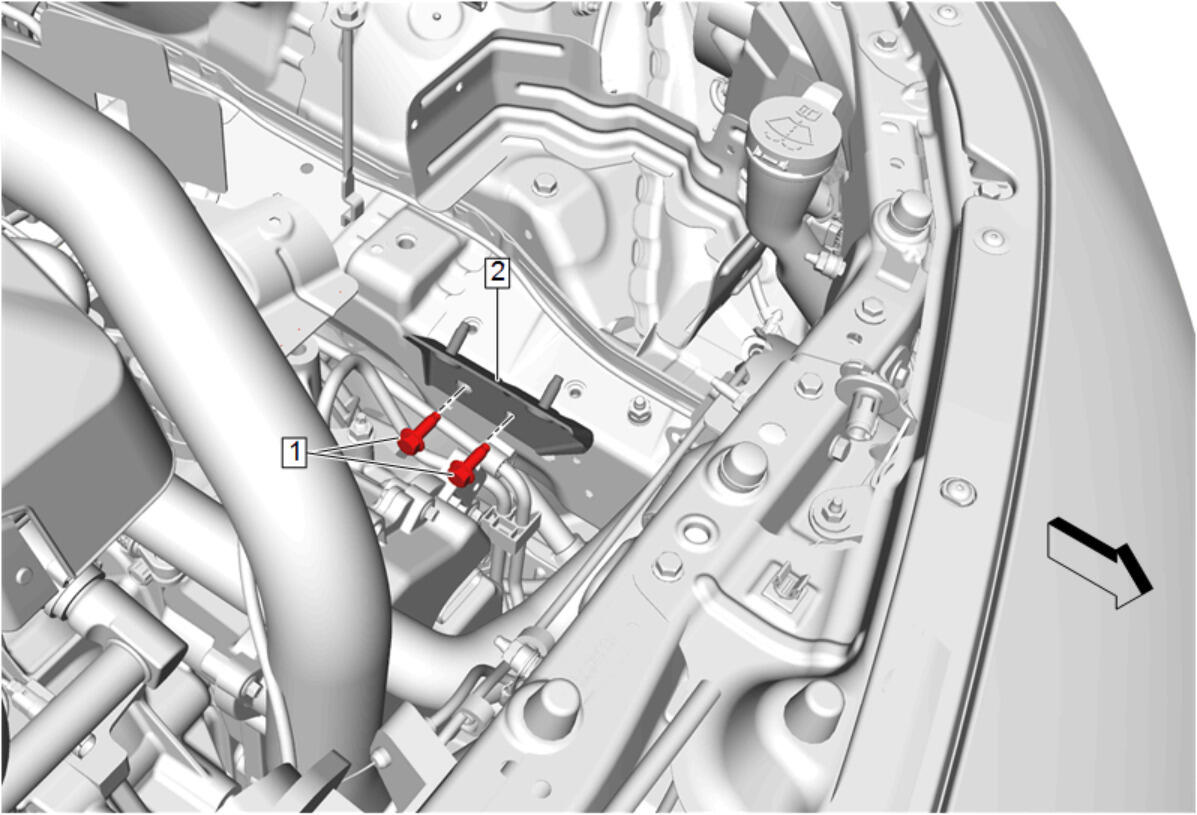

| Callout | Component Name |
|---|---|
| Preliminary Procedure Battery Tray Replacement (LFV) , or Battery Tray Replacement (LTG) |
|
| 1 | Battery Tray Support Bolt [2x]
CAUTION:
Tighten 22 N.m (16 lb ft) |
| 2 | Battery Tray Support |
