Removal Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Drive Motor Battery Radiator Surge Tank - Reposition away - Drive Motor Battery Radiator Surge Tank Replacement
Drive Motor Power Inverter Module Coolant Pipe - Remove - Drive Motor Power Inverter Module Coolant Pipe Replacement (LKN)
Courtesy of GENERAL MOTORS COMPANY

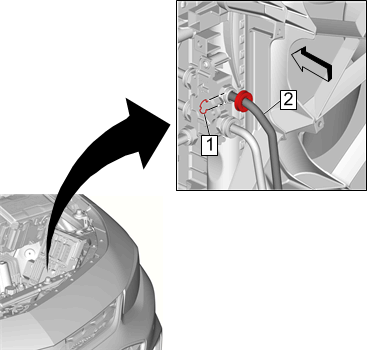

Transmission Fluid Cooler Pipe Bolt (1) - Remove

NOTE:

Cover or plug all open transmission fluid cooler pipe connection points to help avoid any accidental contamination.

Transmission Fluid Cooler Inlet Pipe (2) @ Transmission - Remove
Courtesy of GENERAL MOTORS COMPANY

Transmission Fluid Cooler Inlet Pipe (1) @ Transmission Fluid Cooler Pipe Clip - Remove
Courtesy of GENERAL MOTORS COMPANY

Transmission Fluid Cooler Pipe Fitting Retainer (1) @ Transmission Cooler Bypass Valve - Remove - Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection

NOTE:

Cover or plug all open transmission fluid cooler pipe connection points to help avoid any accidental contamination.

Transmission Fluid Cooler Inlet Pipe (2) @ Transmission Cooler Bypass Valve - Remove
Courtesy of GENERAL MOTORS COMPANY

Remove the transmission fluid cooler inlet pipe (1) from the vehicle.
Courtesy of GENERAL MOTORS COMPANY

Transmission Fluid Cooler Pipe Fitting Seal (1) - Remove

DISCARD the seal.
