Removal Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Instrument Panel Assembly Replacement  - Remove
  2. GM4223137Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Air Outlet Duct Replacement (1) - Remove

  3. GM4212560Courtesy of GENERAL MOTORS COMPANY

    Windshield Wiper Transmission Replacement (2) - Remove

  4. GM4230288Courtesy of GENERAL MOTORS COMPANY

    Communication Interface Module Bracket Replacement (2) - Remove

  5. GM4217021Courtesy of GENERAL MOTORS COMPANY

    Radio Bracket Replacement (2) - Remove

  6. GM4228957Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Sill Garnish Molding Replacement (1) - Remove

  7. Repeat the procedure for the other side.
  8. Disconnect and reposition harness as necessary.

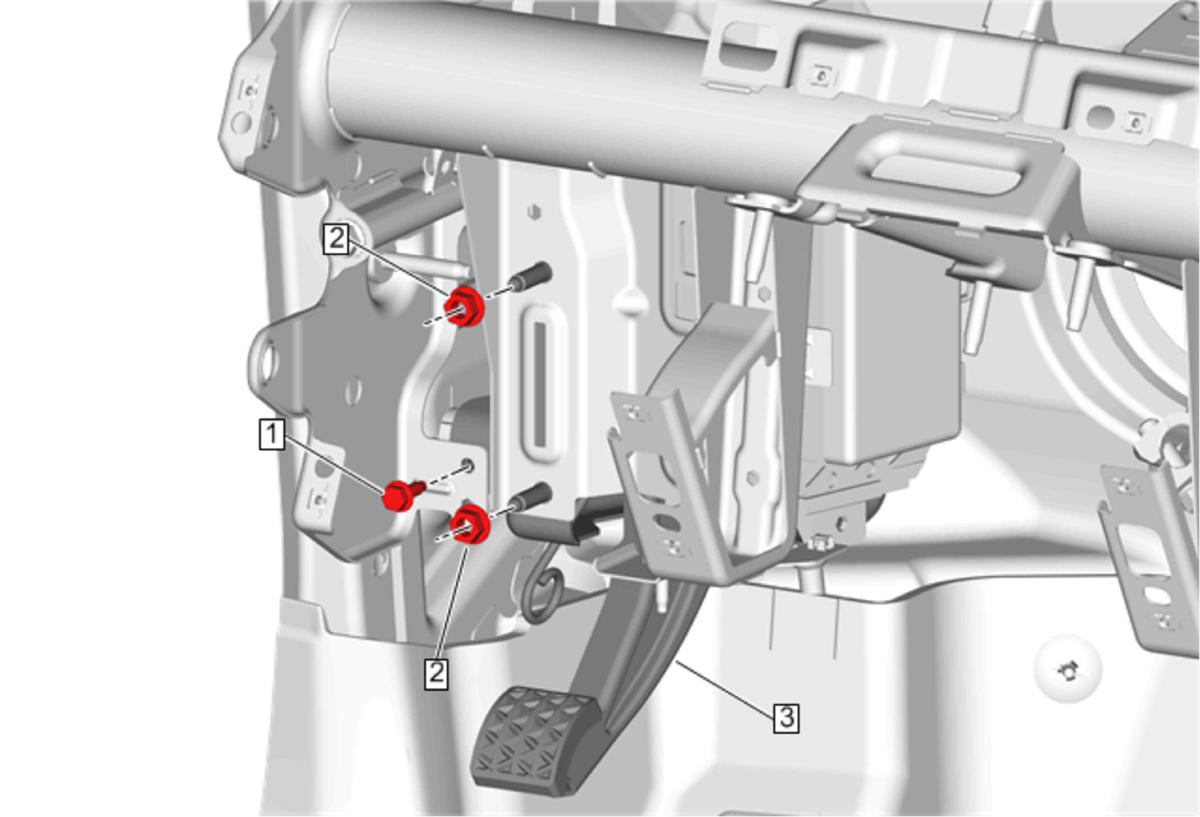

  9. GM4244198Courtesy of GENERAL MOTORS COMPANY

    Parking Brake Lever Replacement (3) - Remove

  10. GM4238015Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Upper Bolt (1) - Remove

  11. GM4238017Courtesy of GENERAL MOTORS COMPANY

    Use a suitable tool to remove the body hinge pillar outer panel hole plugs.

  12. Instrument Panel Tie Bar Bolt (1) - Remove [2x]
  13. GM4238020Courtesy of GENERAL MOTORS COMPANY

    Use a suitable tool to remove the body hinge pillar outer panel hole plugs.

  14. Instrument Panel Tie Bar Bolt (1) - Remove [2x]
  15. GM4238167Courtesy of GENERAL MOTORS COMPANY

    Use a suitable tool to release the Instrument Panel Wiring Harness Junction Block (1) from the Instrument Panel Tie Bar and position out of the way.

  16. GM4238023Courtesy of GENERAL MOTORS COMPANY

    Heater and Air Conditioning Evaporator and Blower Module Nut (1) - Remove [2x]

  17. GM4238025Courtesy of GENERAL MOTORS COMPANY

    Brake and Accelerator and Clutch Pedal Bracket Nut (1) - Remove

  18. Brake and Accelerator and Clutch Pedal Bracket Bolt (2) - Remove [2x]
  19. GM4238028Courtesy of GENERAL MOTORS COMPANY

    Heater and Air Conditioning Evaporator and Blower Module Bolt (1) - Remove

  20. Instrument Panel Center Support Bracket Nut (2) - Remove [2x]
  21. GM4238030Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Tie Bar Bolt (1) - Remove [2x]

  22. Note the location and routing of the instrument panel wiring harness prior to removal to ensure proper installation.
  23. Support the HVAC module in order to prevent damage.
  24. With the aid of an assistant, remove the instrument panel tie bar assembly from the vehicle. (2)
  25. Transfer components as necessary.
