Rear Side Door Window Frame Rear Applique Replacement
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

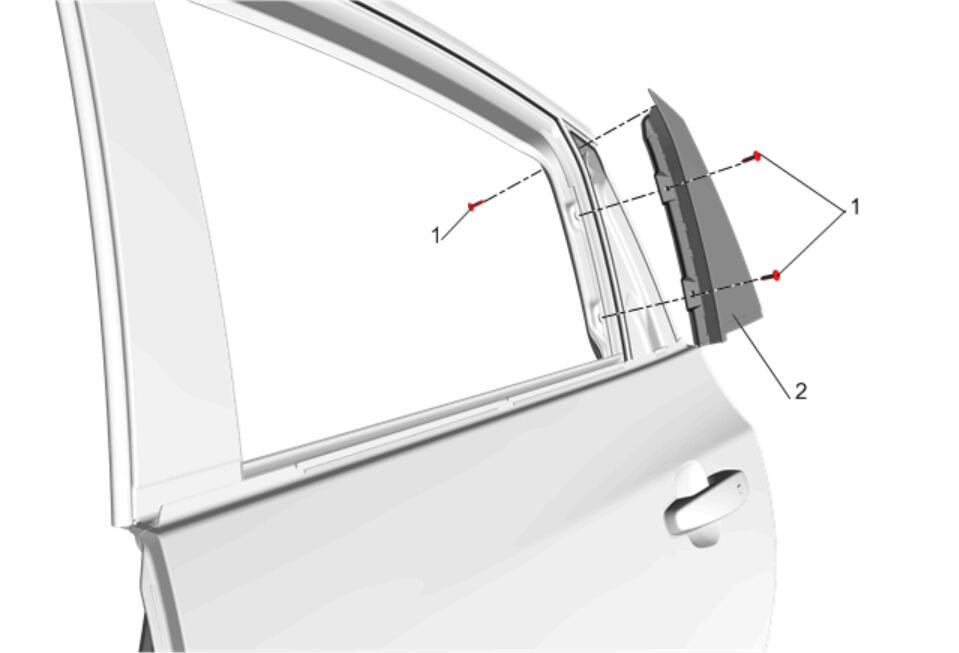

| Callout | Component Name |
|---|---|
| Preliminary Procedure Rear Side Door Window Belt Reveal Molding Replacement |
|
| 1 | Rear Side Door Window Frame Rear Applique Screw [3x]
CAUTION:
Refer to Fastener Caution . Procedure Pull weatherstrip away from the applique to access the screws. Tighten 2.5 N.m (22 lb in) |
| 2 | Rear Side Door Window Frame Rear Applique |
