Rear Side Door Window Belt Reveal Molding Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

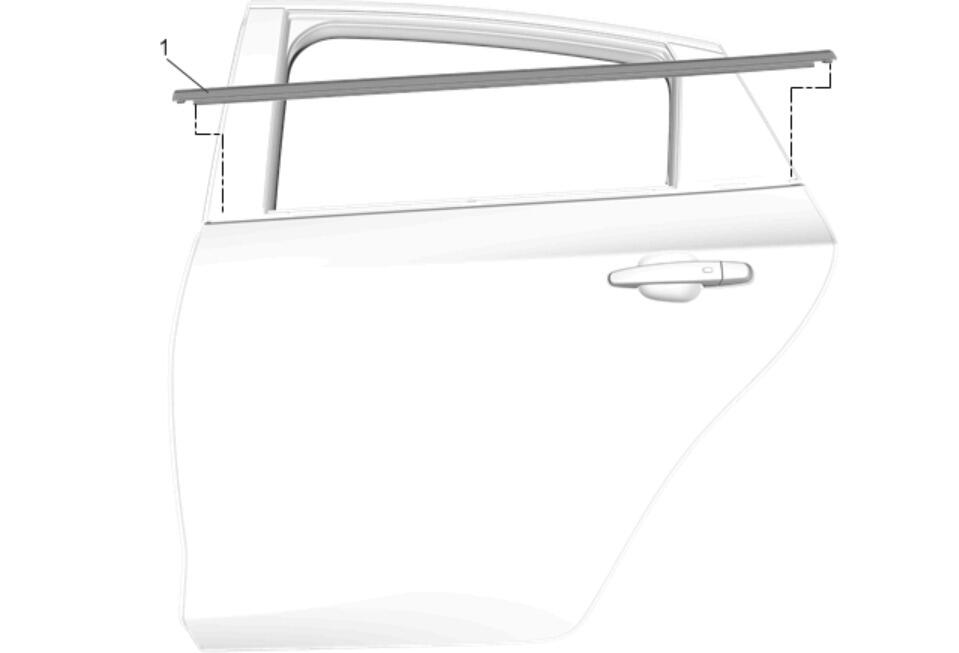

Callout	Component Name
1	Rear Side Door Window Belt Reveal Molding CAUTION: Refer to Paint Damage Caution . Procedure Place the rear door window in the full down position. Apply masking tape to the outer applique and door frame. Using a small flat-bladed tool, lift the belt molding up to remove from the door flange. Press firmly to insert the rear side door window belt reveal molding back on the door flange. NOTE: Inspect the window for proper operation.

Callout

Component Name

Rear Side Door Window Belt Reveal Molding

CAUTION:

Refer to Paint Damage Caution .

Procedure

Place the rear door window in the full down position.
Apply masking tape to the outer applique and door frame.
Using a small flat-bladed tool, lift the belt molding up to remove from the door flange.
Press firmly to insert the rear side door window belt reveal molding back on the door flange.

NOTE:

Inspect the window for proper operation.
