Low Frequency Rear Bumper Antenna Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

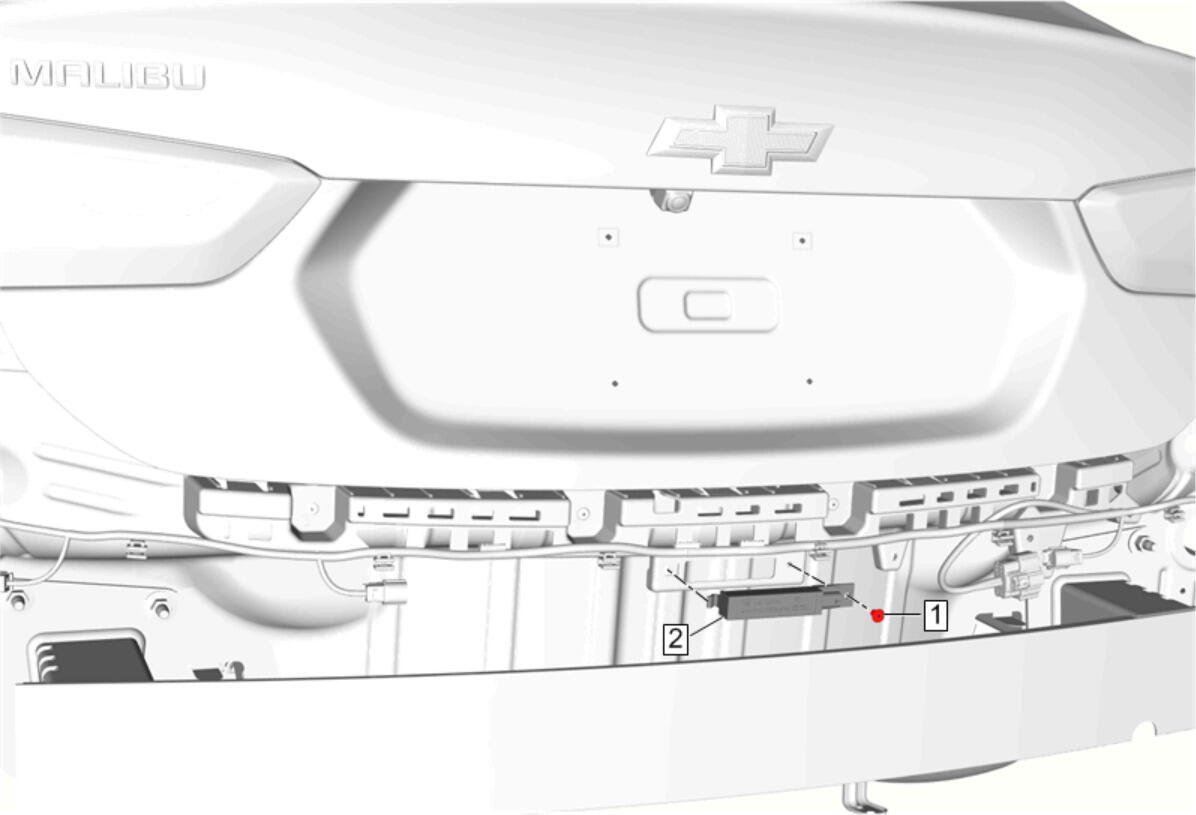

Callout	Component Name
Preliminary Procedures Rear Bumper Fascia Replacement Disconnect the electrical connector.
1	Rivet WARNING: Refer to Eye Protection Warning . Procedure Drill out the rivet.
2	Low Frequency Rear Bumper Antenna Procedure Release the retaining tab.

Callout

Component Name

Preliminary Procedures

Rear Bumper Fascia Replacement
Disconnect the electrical connector.

Rivet

WARNING:

Refer to Eye Protection Warning .

Procedure
Drill out the rivet.

Low Frequency Rear Bumper Antenna
Procedure
Release the retaining tab.
