Removal Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Vehicle alignment is not required if the cradle is being lowered or dropped to perform another procedure. This vehicle is equipped with a cradle to body aligning feature: cradle to body through holes or self-aligning pins that are part of the cradle or body. Only align if replacing the cradle with a NEW part and transferring components.

Courtesy of GENERAL MOTORS COMPANY

Intermediate Steering Shaft (2) - Remove - Intermediate Steering Shaft Replacement
Courtesy of GENERAL MOTORS COMPANY

Disconnect the steering gear electrical connectors. (1)
Wiring Harness Retainer (2) - Disengage [2x]
Install the engine support fixture. Engine Support Fixture
Raise and support the vehicle. Lifting and Jacking the Vehicle
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia Center Air Deflector (2) - Loosen - Front Bumper Fascia Center Air Deflector Replacement
Courtesy of GENERAL MOTORS COMPANY

Underbody Front Air Deflector (2) - Remove - Underbody Front Air Deflector Replacement
Courtesy of GENERAL MOTORS COMPANY

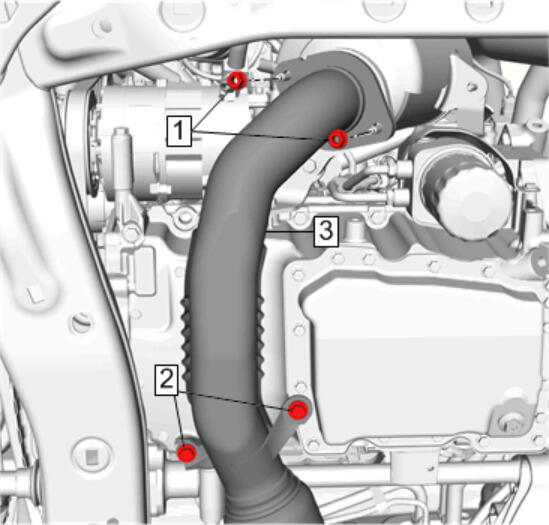

Exhaust Front Pipe (3) - Remove - Exhaust Front Pipe Replacement (LTG)
Courtesy of GENERAL MOTORS COMPANY

Steering Linkage Outer Tie Rod (3) @Knuckle - Remove - Steering Linkage Outer Tie Rod Replacement
Courtesy of GENERAL MOTORS COMPANY

Lower Control Arm (1) @Knuckle - Remove - Lower Control Arm Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Stabilizer Shaft Link (1) @ Front Stabilizer Shaft - Separate - Stabilizer Shaft Link Replacement
Courtesy of GENERAL MOTORS COMPANY

NOTE:
During cradle removal, additional care may be needed at transmission mount bracket to assist in separation.

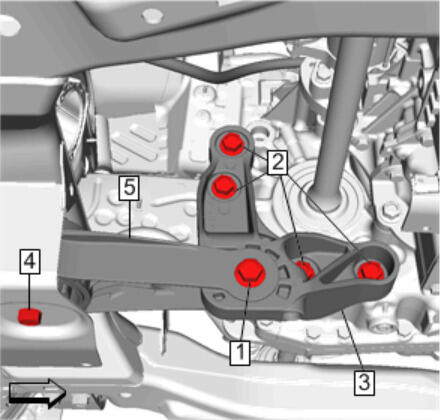

Transmission Rear Mount Bracket Fastener (2) - Remove - For 5ET50 (MKE)), see TRANSMISSION REAR MOUNT REPLACEMENT , for 9T50 (M3E), see TRANSMISSION MOUNT STRUT BRACKET REPLACEMENT (REAR) for VT40 (MRG), see TRANSMISSION MOUNT STRUT BRACKET REPLACEMENT
Courtesy of GENERAL MOTORS COMPANY

Install EN-39580 support stand under the drivetrain and front suspension cradle.
Lower the vehicle until the drivetrain and front suspension frame is resting lightly on the jackstands.
Drivetrain and Front Suspension Support Bolt (1) - Remove [4x]
Drivetrain and Front Suspension Support Bolt (2) - Remove [6x]
With the aid of an assistant, carefully raise the body from the frame.
Courtesy of GENERAL MOTORS COMPANY

Drivetrain and Front Suspension Cradle (1) - Remove
