Rear Bumper Valance Panel Replacement (With GPN)

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

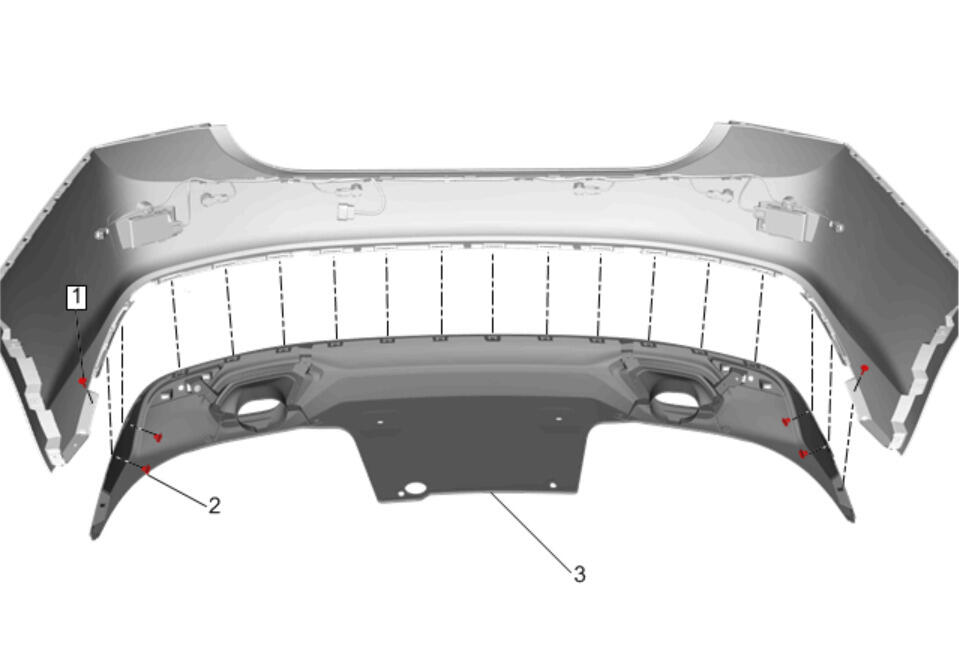

Callout	Component Name
Preliminary Procedure Rear Bumper Fascia Replacement
1	Rear Bumper Valance Panel Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Rear Bumper Valance Panel Clip [4x]
3	Rear Bumper Valance Panel Procedure Carefully push a small nylon wedge between the lower fascia and the rear bumper valance panel. Insert a small flat-bladed tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the upper fascia from the rear bumper valance panel. Transfer components as necessary.
