Rear Bumper Impact Bar Replacement
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

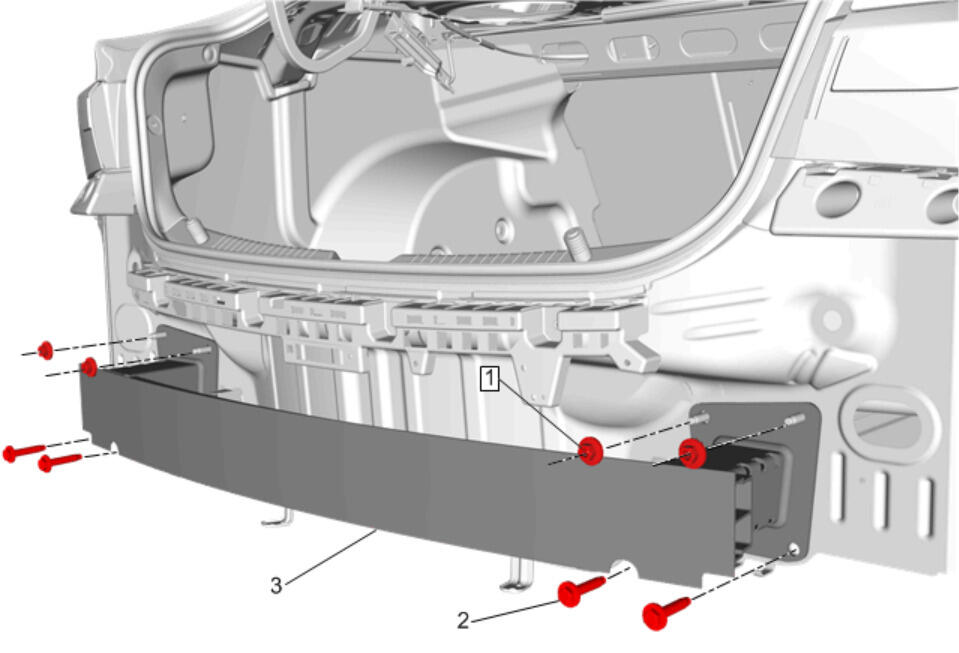

| Callout | Component Name |
|---|---|
| Preliminary Procedure Rear Bumper Fascia Replacement |
|
| 1 | Rear Bumper Impact Bar Nut [4x]
CAUTION:
Refer to Fastener Caution . Tighten 58 N.m (43 lb ft) |
| 2 | Rear Bumper Impact Bar Bolt [4x] Tighten 58 N.m (43 lb ft)
NOTE:
When removing the 2 left hand bolts, support may be needed for the muffler. |
| 3 | Rear Bumper Impact Bar Procedure Transfer components as necessary. |
