Pressure Relief Valve Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

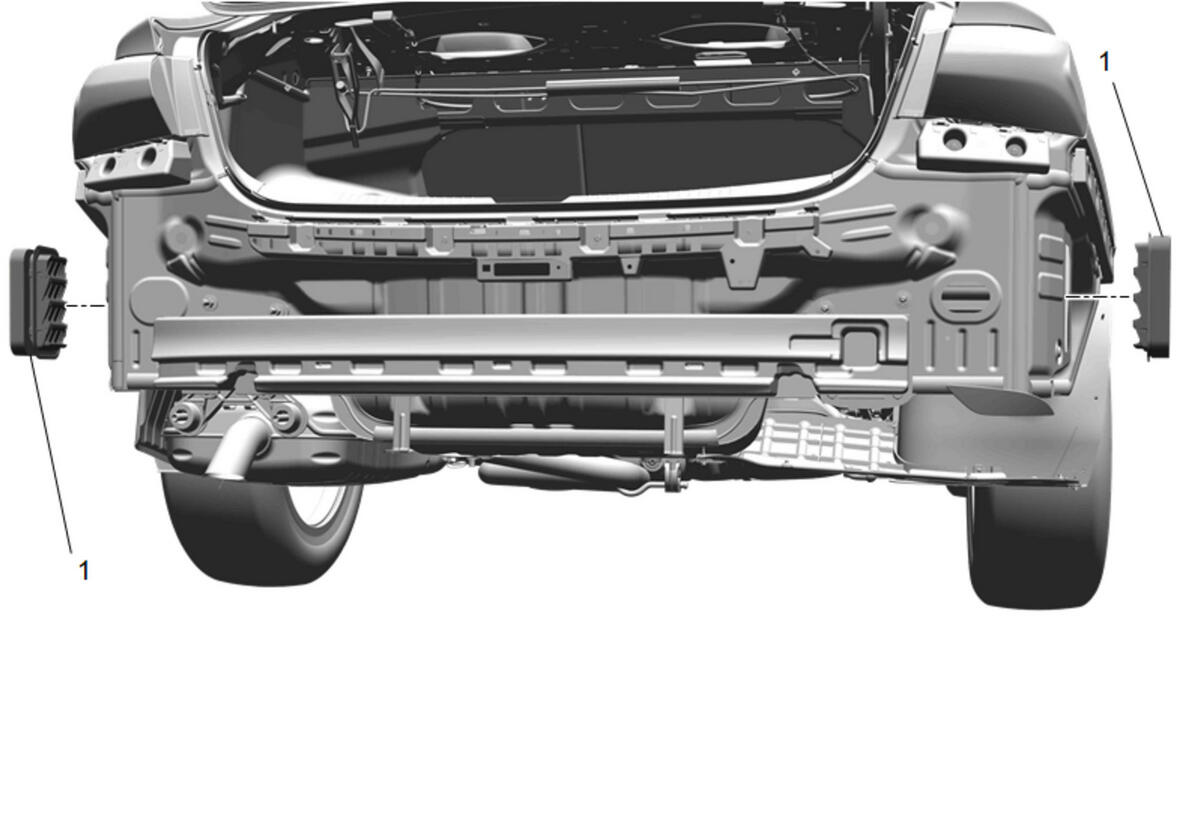

GM5111983Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Rear Bumper Fascia Replacement
1 Body Pressure Relief Valve[2x]
Procedure
Use a flat-bladed tool to release the locking tabs on the body pressure relief valve at the upper, and the lower locations.
