Radio Rear Speaker Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

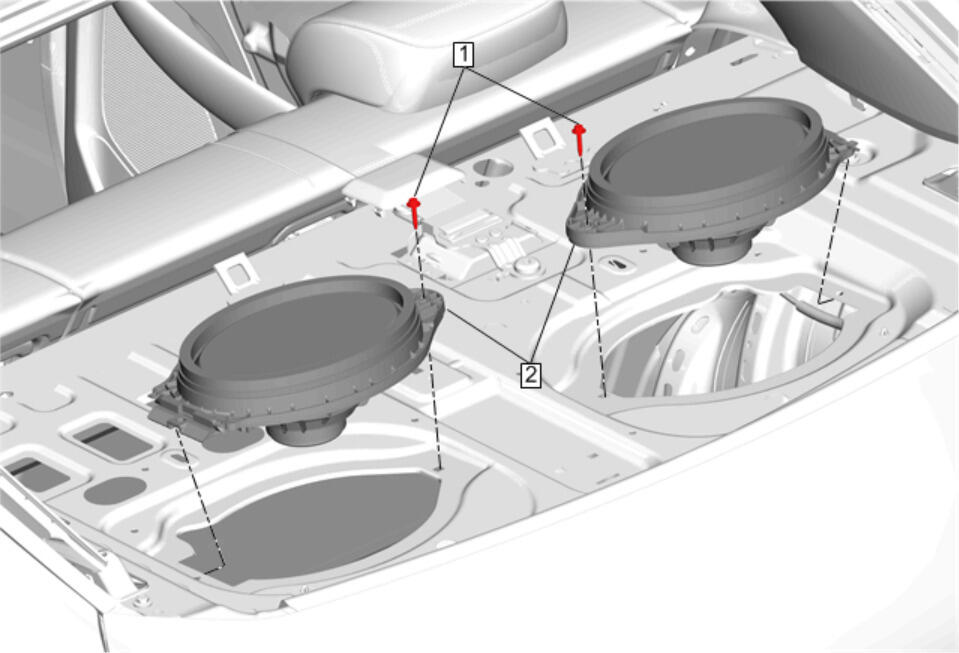

Callout	Component Name
Preliminary Procedure Rear Window Panel Trim Replacement
1	Radio Rear Speaker Fastener CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Radio Rear Speaker Procedure Lift the radio rear speaker to release the tab from the rear window panel. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure
Rear Window Panel Trim Replacement

Radio Rear Speaker Fastener

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Radio Rear Speaker

Procedure

Lift the radio rear speaker to release the tab from the rear window panel.
Disconnect the electrical connector.
