Rear Parking Assist Alarm Sensor Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Rear Bumper Fascia Replacement

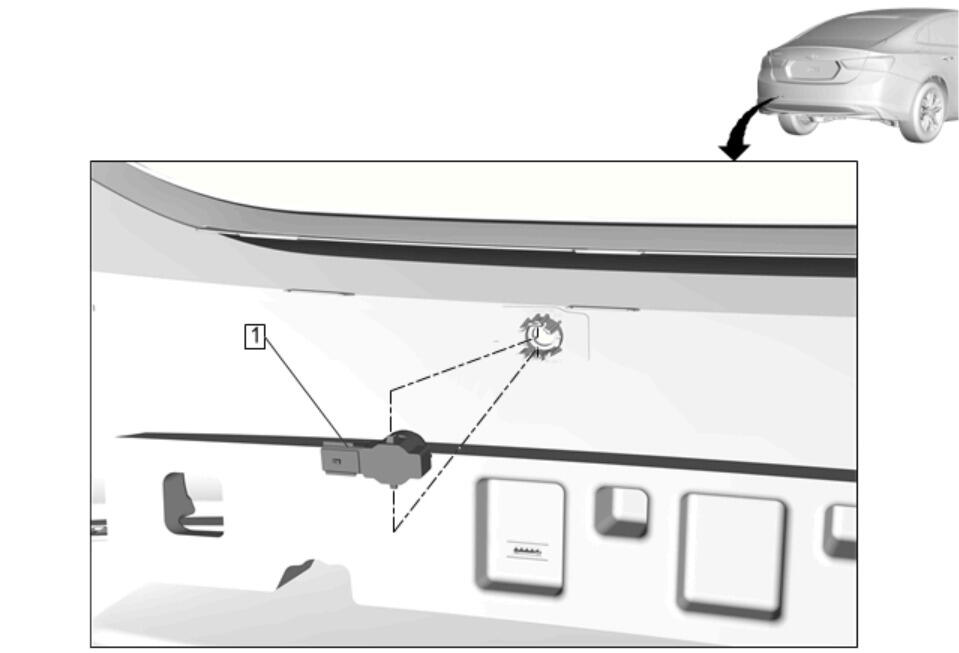

1	Advance Parking Assist Alarm Sensor [2x] Procedure Disconnect the electrical connector. Release the locking tab from the advance parking assist alarm sensor bracket. NOTE: Do not refinish previously painted sensors. Excess paint build up will cause the sensor to be inoperative

Callout

Component Name

Preliminary Procedure
Rear Bumper Fascia Replacement

Advance Parking Assist Alarm Sensor [2x]

Procedure

Disconnect the electrical connector.
Release the locking tab from the advance parking assist alarm sensor bracket.

NOTE:

Do not refinish previously painted sensors. Excess paint build up will cause the sensor to be inoperative
