Installation Procedure
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

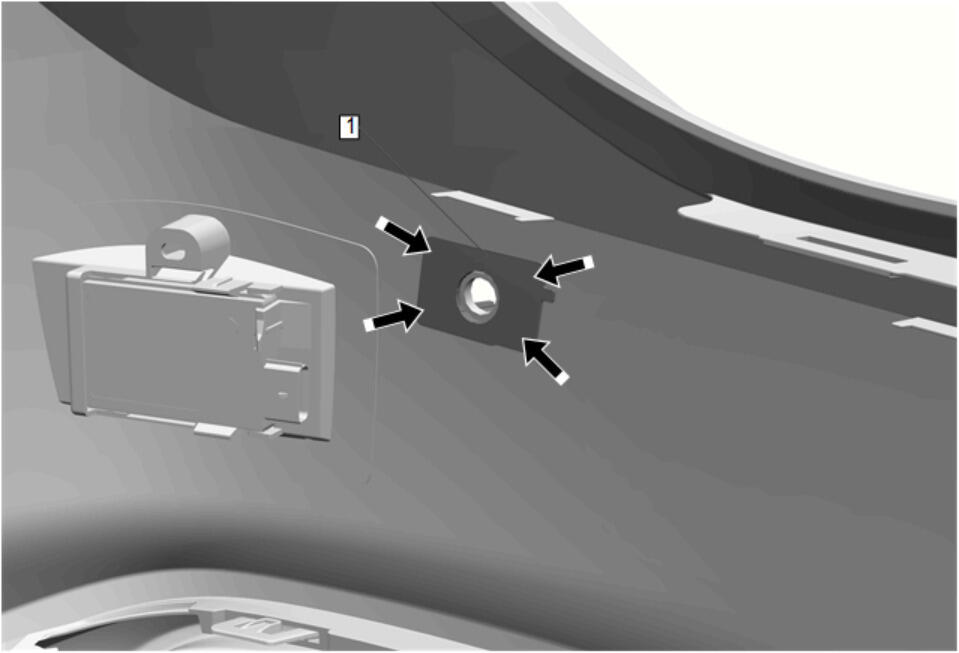

Clean the repair area (1) with Fusor 703 cleaner or equivalent.
- Apply structural adhesive, Fusor™ 127EZ or equivalent, to fascia at mating surface (1) according to manufacturer's directions.

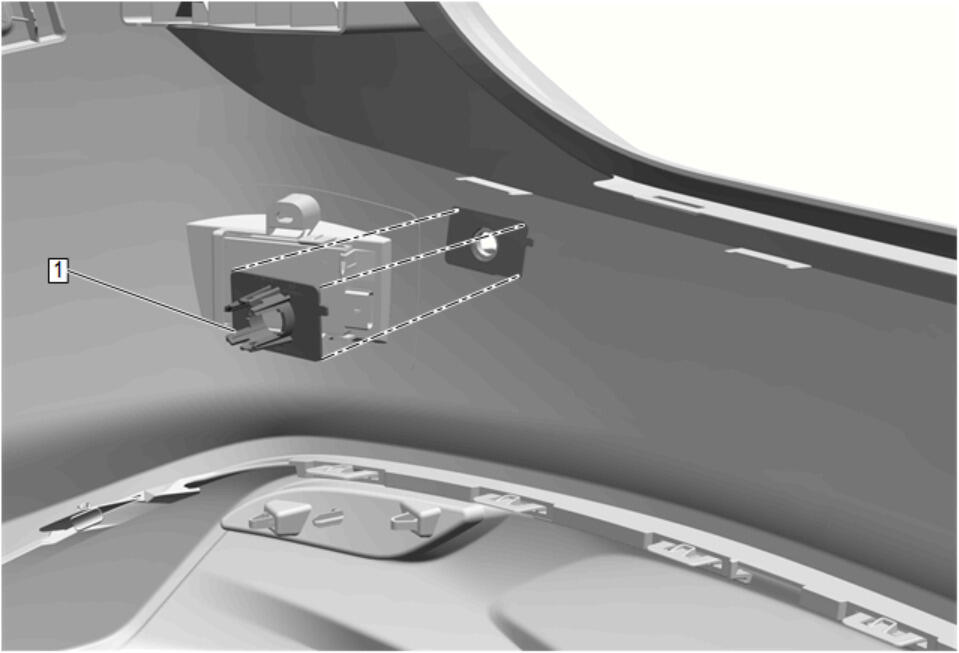

Using the alignment tabs/outline, install the rear parking assist alarm sensor bracket (1) to the fascia.
- Use care to avoid excess material squeeze out around rear parking assist alarm sensor bracket (1).
- Lightly clamp, tape or apply a weight to the rear parking assist alarm sensor bracket (1) to hold it in place until adhesive cures.
- Allow adhesive to cure according to manufacturer's directions.
Rear Parking Assist Alarm Sensor (1) - Install - Rear Parking Assist Alarm Sensor Replacement

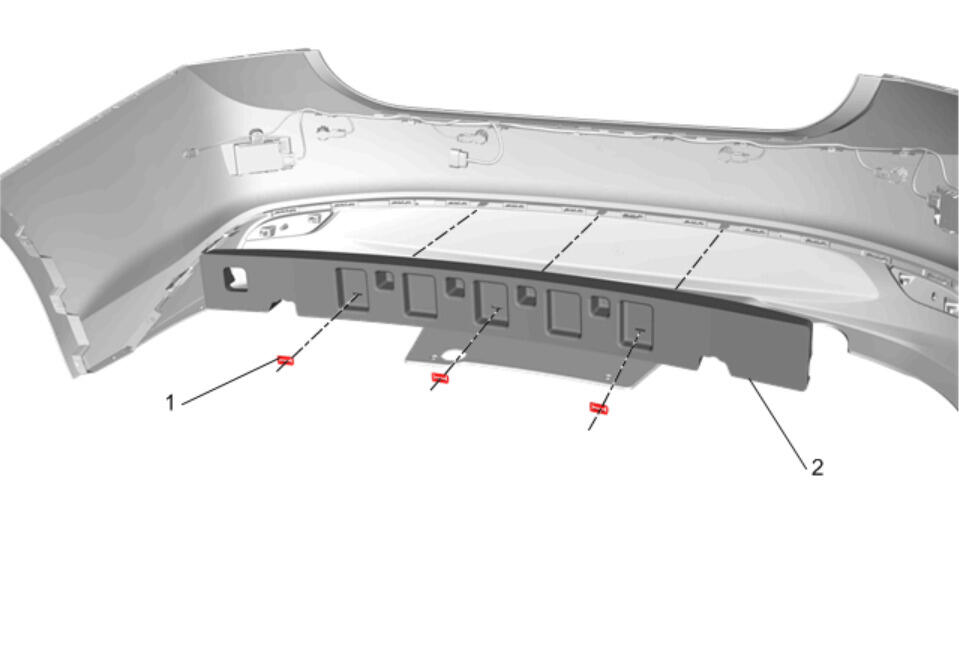

Rear Bumper Fascia Energy Absorber (2) - Install - Rear Bumper Fascia Energy Absorber Replacement
