Removal Procedure
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

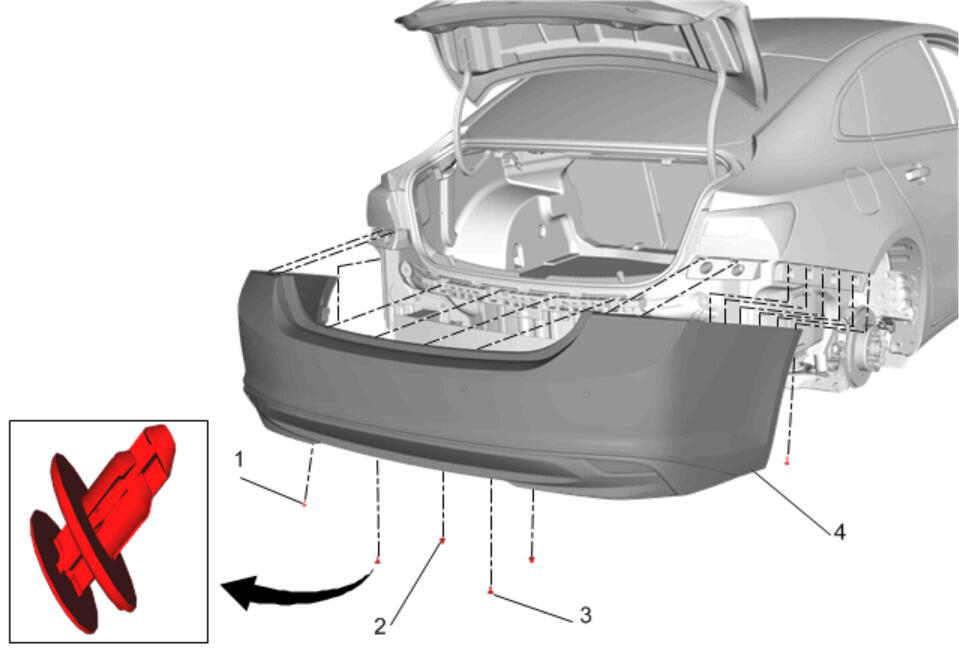

Rear Bumper Fascia (4) - Remove - Rear Bumper Fascia Replacement
- NOTE:
The object sensor is a one piece design. Do NOT twist the sensor cap to try and remove the painted cap. Replacement sensor requires painting to match fascia/bumper body color.

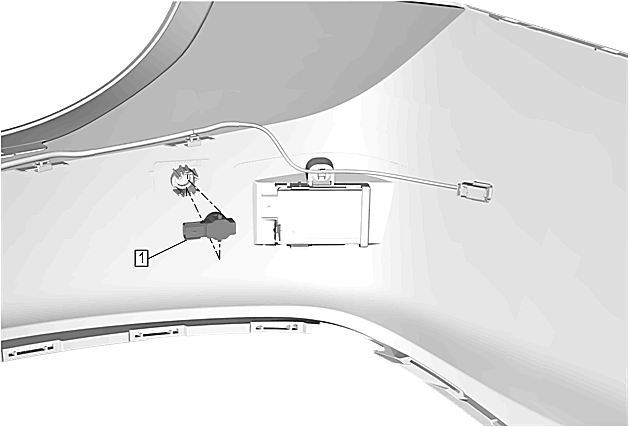

- Lift the locking tabs on the housing and remove the object sensor (1).
- Disconnect the electrical connector.
