Transmission Control Module Bracket Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

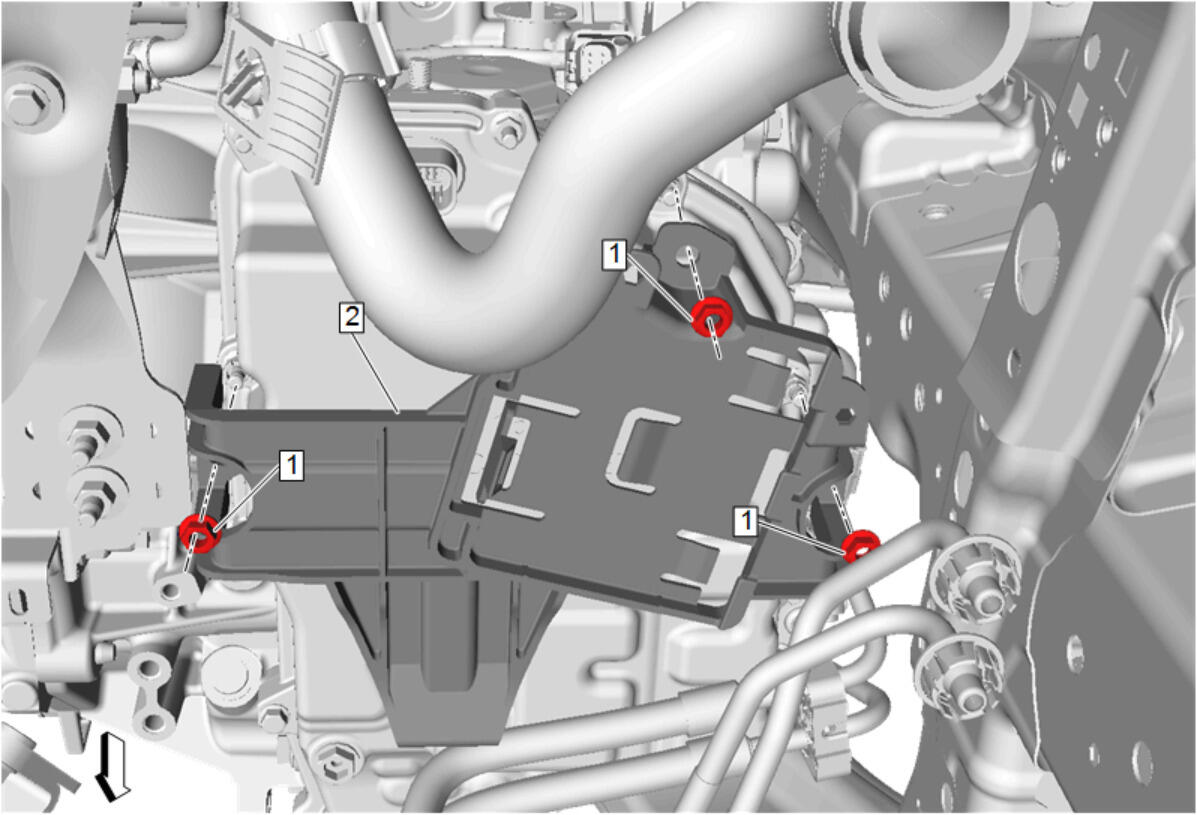

Callout	Component Name
Preliminary Procedures Charge Air Cooler Outlet Air Tube Replacement Transmission Control Module Replacement
1	Transmission Control Module Bracket Nut [3x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Transmission Control Module Bracket Disconnect battery negative cable retainer.

Callout

Component Name

Preliminary Procedures

Charge Air Cooler Outlet Air Tube Replacement
Transmission Control Module Replacement

Transmission Control Module Bracket Nut [3x]

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Transmission Control Module Bracket
Disconnect battery negative cable retainer.
